Century

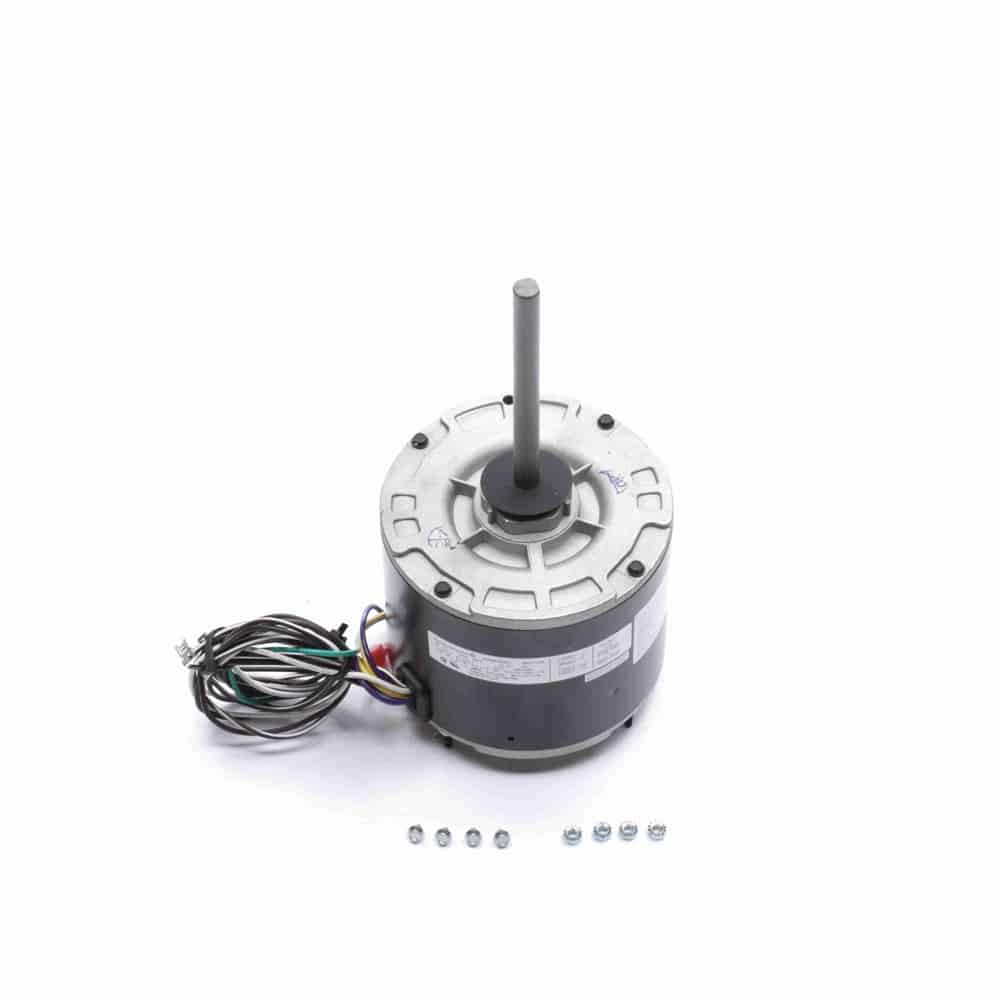

1/3HP PSC 48Y TE 1075 208-230V 7.5uF CF
Mfr # EM3729F | Wright’s # CEN EM3729F
1/3HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Sub-Brand
PRO-E SERIES®
Mfr #
EM3729F
Wright's #
CEN EM3729F
Country of Origin
MEX
Specifications
C Dim
11.17"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
F
kW
0.25kW
Material
Rolled Steel
Max Ambient
70°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
2.2-2.5
Rated Voltage
208-230
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
