Century
5HP 1PH 56HZ 2P ODP 3450 230V MOL CM
Mfr # CP1502L | Wright’s # CEN CP1502L

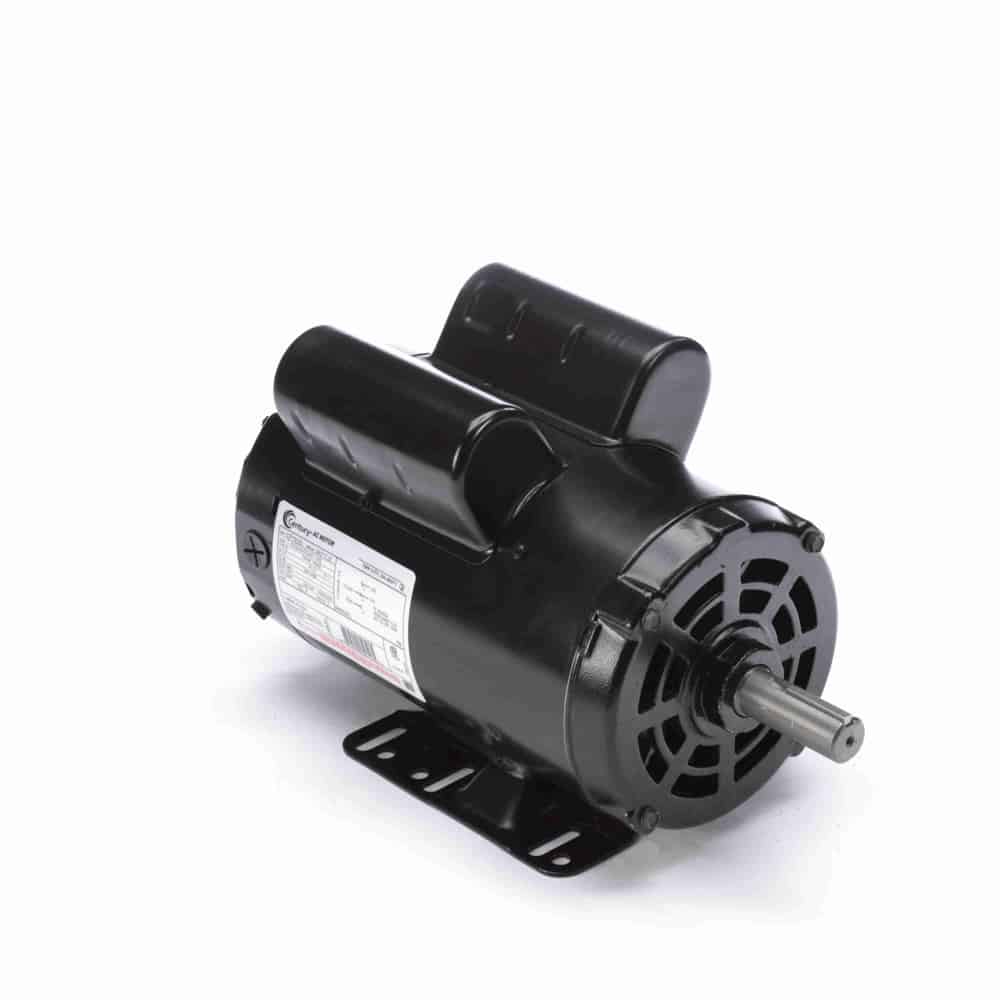

5HP Compressor Motor, 1 Phase, 56HZ Frame, 3450 RPM, 1 Speed, Capacitor Start Capacitor Run, 230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
CP1502L
Wright's #
CEN CP1502L
Country of Origin
MEX
Specifications
C Dim
14.06"
Electrical Type
Capacitor Start Capacitor Run
Enclosure
ODP
Frame
56HZ
Frequency
60 Hz
HP
5 HP
HP2
5 HP
Insulation Class
B
kW
3.7kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Manual
Phase
1
Rated Current
19.7
Rated Voltage
230
Rotation
Reversible Clockwise
RPM
3450
Service Factor
1
Shaft Diameter
0.875"
Speed
3450
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use.
High starting torque on start-up, to achieve a higher starting load required in air compressor applications.
Capacitor start or capacitor run for low-amp, high-efficiency, as noted.
Heavy-duty construction ensures motor durability.
5HP Compressor Motor, 1 Phase, 56HZ Frame, 3450 RPM, 1 Speed, Capacitor Start Capacitor Run, 230V, ODP Enclosure
