Century
1/3HP 1PH 5.6″ 4P ODP 1725 115/230V AOL
Mfr # CB2034AD | Wright’s # CEN CB2034AD

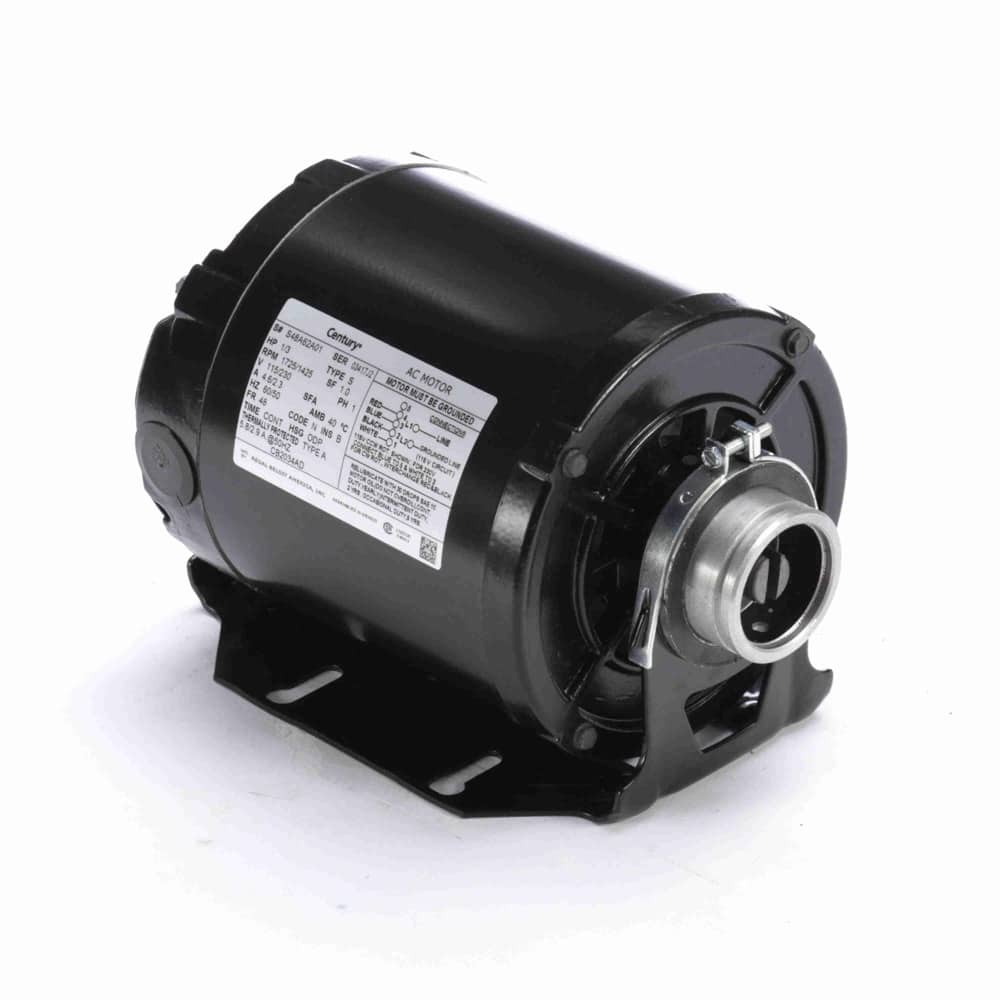

1/3HP Carbonator Pump Motor, 1 Phase, 48 Frame, 1725 RPM, 1 Speed, Split Phase, 115/230V, ODP Enclosure
$244.49
Product Information
Brand
Century
Mfr #
CB2034AD
Wright's #
CEN CB2034AD
Country of Origin
MEX
Specifications
C Dim
8.57"
Electrical Type
Split Phase
Enclosure
ODP
Frame
48
Frequency
60/50 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
4.6/2.3
Rated Voltage
115/230
Rotation
Reversible
RPM
1725
Service Factor
1
Shaft Diameter
0.625"
Speed
1725/1425
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Automatic reset thermal protector (as noted) protects against overload.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Interchangeable with most OEM designs.
1/3HP Carbonator Pump Motor, 1 Phase, 48 Frame, 1725 RPM, 1 Speed, Split Phase, 115/230V, ODP Enclosure
