Century
1/4HP 1PH 48Y 4P ODP 1725 115V AOL
Mfr # CB2024AV1 | Wright’s # CEN CB2024AV1

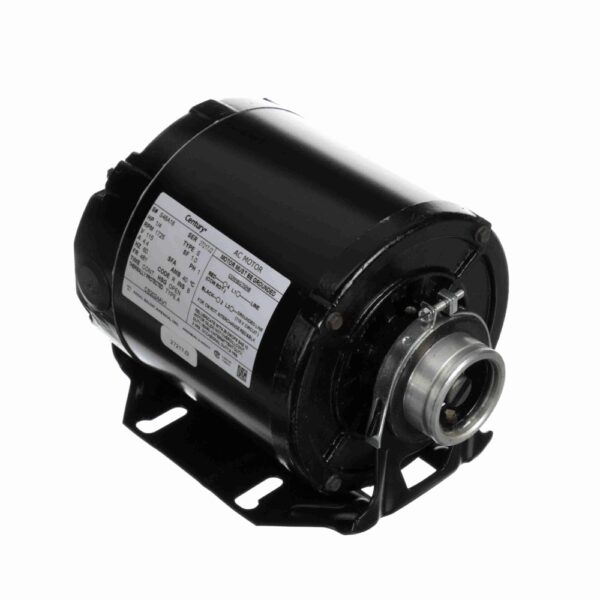

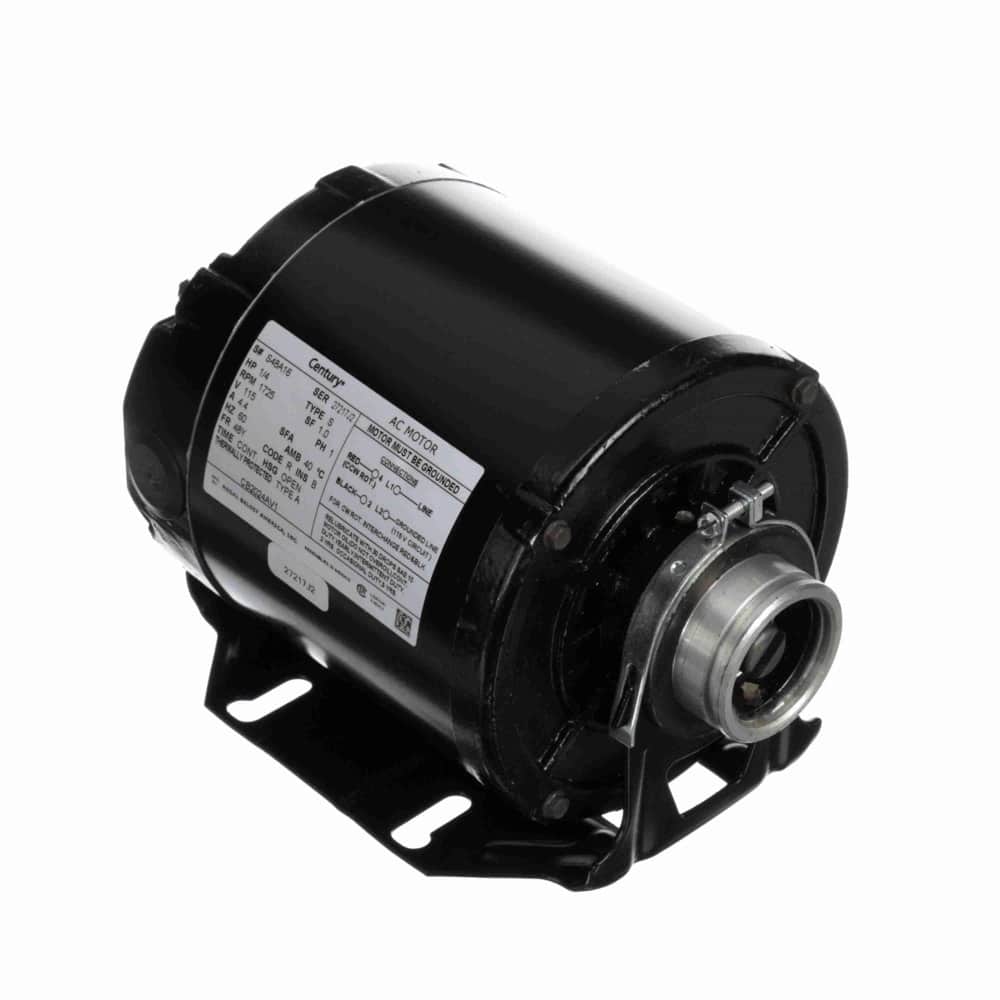

1/4HP Carbonator Pump Motor, 1 Phase, 48Y Frame, 1725 RPM, 1 Speed, Split Phase, 115V, ODP Enclosure
$213.68
Product Information
Brand
Century
Mfr #
CB2024AV1
Wright's #
CEN CB2024AV1
Country of Origin
MEX
Specifications
C Dim
8.07"
Electrical Type
Split Phase
Enclosure
ODP
Frame
48Y
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
4.4
Rated Voltage
115
Rotation
Reversible
RPM
1725
Service Factor
1
Shaft Diameter
0.625"
Speed
1725
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Automatic reset thermal protector (as noted) protects against overload.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Interchangeable with most OEM designs.
1/4HP Carbonator Pump Motor, 1 Phase, 48Y Frame, 1725 RPM, 1 Speed, Split Phase, 115V, ODP Enclosure
