Century
1HP 1PH 56CZ 8P TEAO 850 230V AOL BM
Mfr # C783 | Wright’s # CEN C783

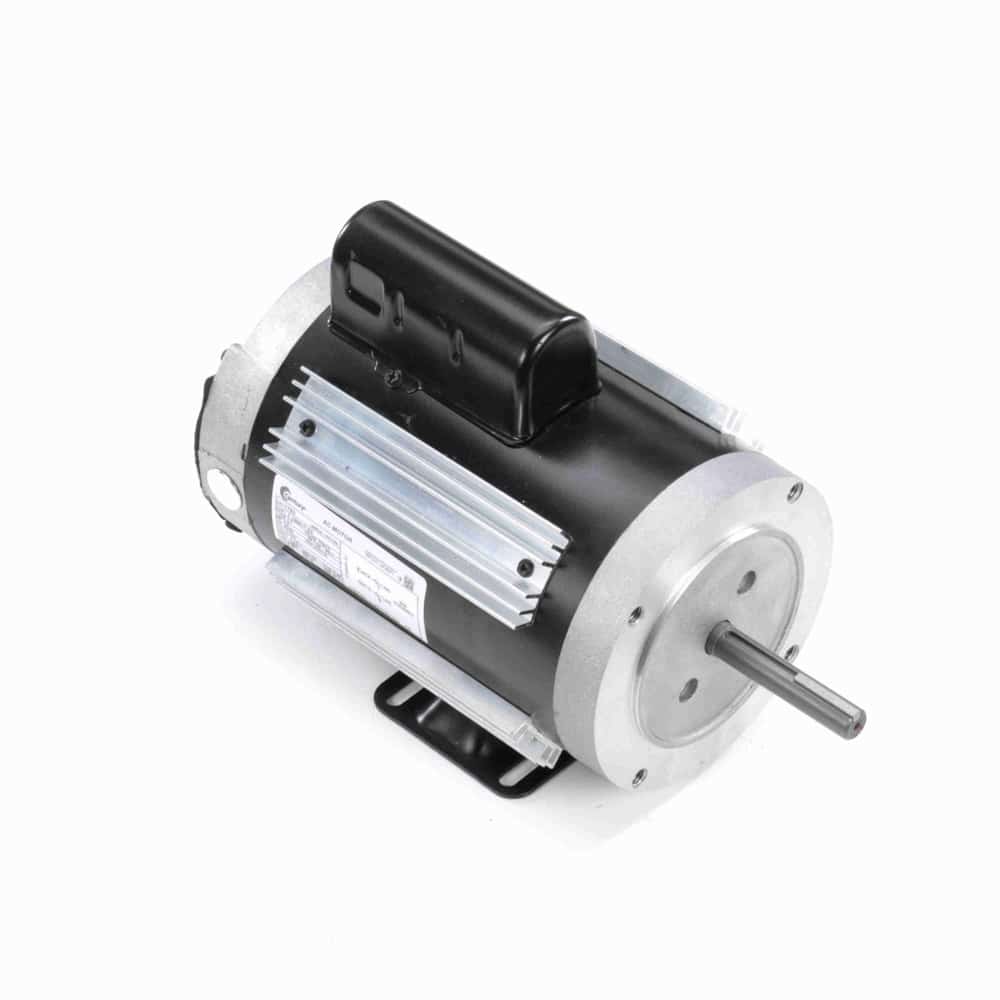

1HP Direct Drive Fan Motor, 1 Phase, 56CZ Frame, 850 RPM, 1 Speed, Permanent Split Capacitor, Single Or Dual Voltage, 230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
C783
Wright's #
CEN C783
Country of Origin
MEX
Specifications
C Dim
14.22"
Electrical Type
Permanent Split Capacitor, Single Or Dual Voltage
Enclosure
TEAO
Frame
56CZ
Frequency
60/50 Hz
HP
1 HP
HP2
1 HP
Insulation Class
B
kW
0.75kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
8
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
5.1/5.1
Rated Voltage
230
Rotation
Counterclockwise
RPM
850
Service Factor
1
Shaft Diameter
0.625"
Speed
850/725
Starting Method
Description
Automatic thermal protection prevents overheating.
Class B insulation protects motor for a maximum temperature rating.
Double sealed bearing construction extends the lifetime of the motor.
Totally enclosed air over, fully gasketed design.
1HP Direct Drive Fan Motor, 1 Phase, 56CZ Frame, 850 RPM, 1 Speed, Permanent Split Capacitor, Single Or Dual Voltage, 230V, TEAO Enclosure
