Century

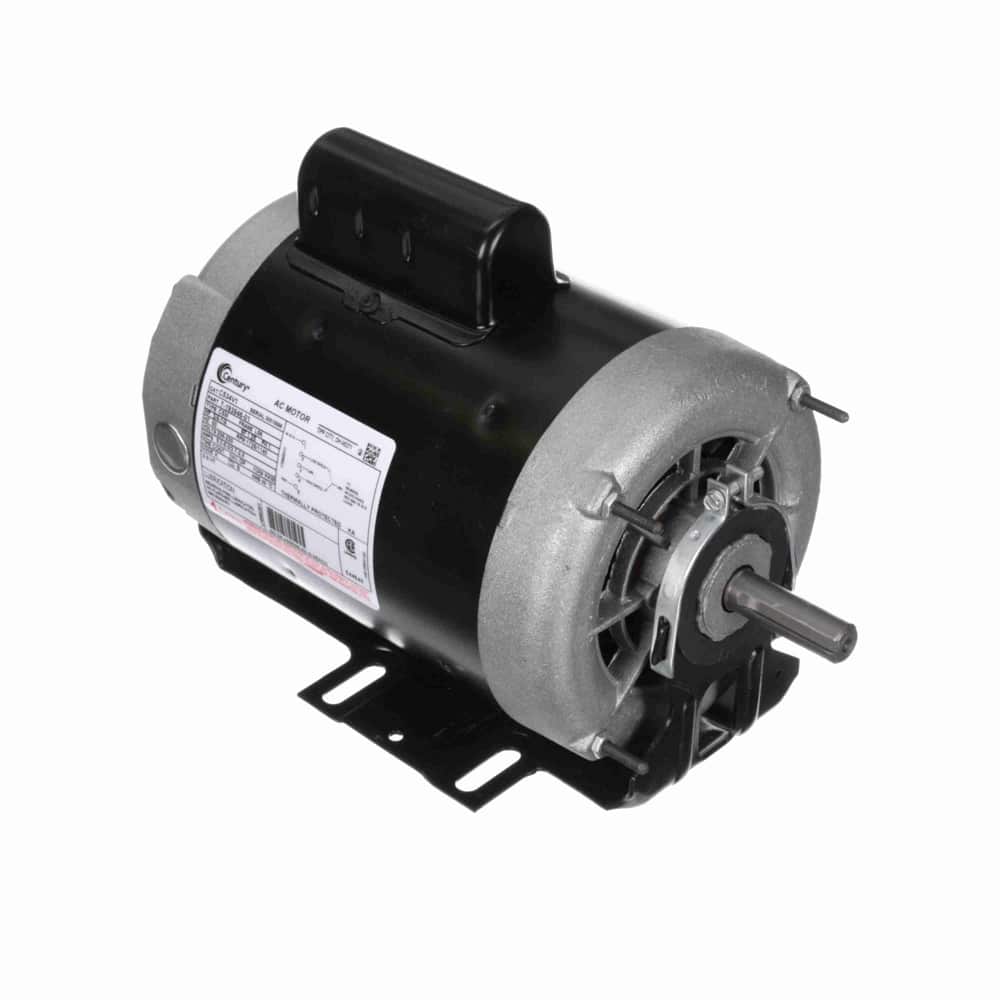

3/4HP 1PH 56 ODP 2spd 1725 2W-VT 208-230V BM
Mfr # C534V1 | Wright’s # CEN C534V1
3/4-1/4HP Fan & Blower Motor, 1 Phase, 56 Frame, 1725 RPM, 2-2-VT Speed, Capacitor Start, Induction Run, Multi-Speed, 208-230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
C534V1
Wright's #
CEN C534V1
Country of Origin
MEX
Specifications
C Dim
12.25"
Electrical Type
Capacitor Start, Induction Run, Multi-Speed
Enclosure
ODP
Frame
56
Frequency
60 Hz
HP
0.75 HP
HP2
3/4-1/4 HP
Insulation Class
B
kW
0.56kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4/6
Number of Speeds
2-2-VT
Overload Protection
Thermally Protected
Phase
1
Rated Current
5.0-5.0/2.7-2.8
Rated Voltage
208-230
Rotation
Reversible Counterclockwise
RPM
1725
Service Factor
1.25
Shaft Diameter
0.625"
Speed
1725/1140
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use.
Double-shielded bearings extend the service life of the motor.
Automatic reset thermal protector (as noted) protects against overload.
Moderate starting torque helps reduce fan stresses.
3/4-1/4HP Fan & Blower Motor, 1 Phase, 56 Frame, 1725 RPM, 2-2-VT Speed, Capacitor Start, Induction Run, Multi-Speed, 208-230V, ODP Enclosure
