Century
1/2HP 1PH 56Y 4P ODP 1725 115/230V AOL CIRC
Mfr # C242 | Wright’s # CEN C242

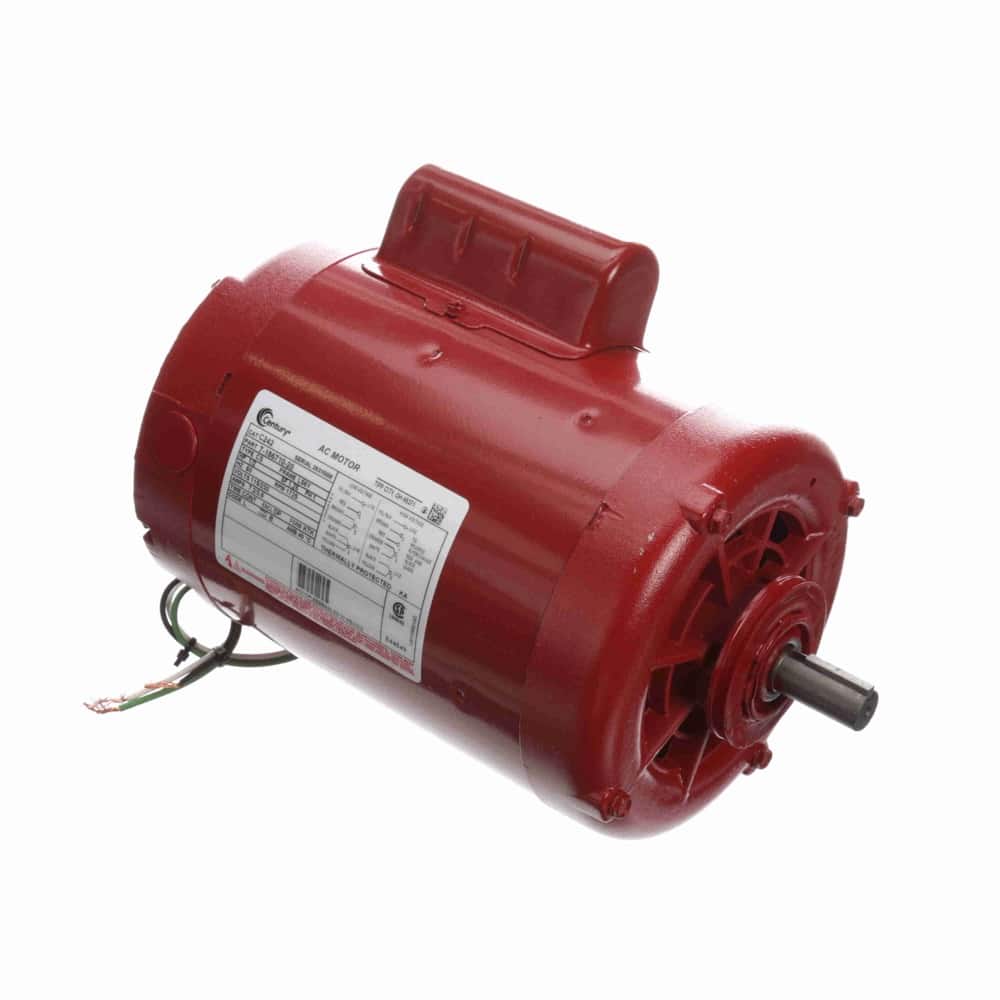

1/2HP Circulator Pump Motor, 1 Phase, 56Y Frame, 1725 RPM, 1 Speed, Capacitor Start, Induction Run, Single Or Dual Voltage, 115/230V, ODP Enclosure
$493.49
Product Information
Brand
Century
Mfr #
C242
Wright's #
CEN C242
Country of Origin
MEX
Specifications
C Dim
11.62"
Electrical Type
Capacitor Start, Induction Run, Single Or Dual Voltage
Enclosure
ODP
Frame
56Y
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
7.2/3.6
Rated Voltage
115/230
Rotation
Reversible Clockwise
RPM
1725
Service Factor
1.25
Shaft Diameter
0.625"
Speed
1725
Starting Method
Description
Automatic reset thermal protector
1/2HP Circulator Pump Motor, 1 Phase, 56Y Frame, 1725 RPM, 1 Speed, Capacitor Start, Induction Run, Single Or Dual Voltage, 115/230V, ODP Enclosure
