Century

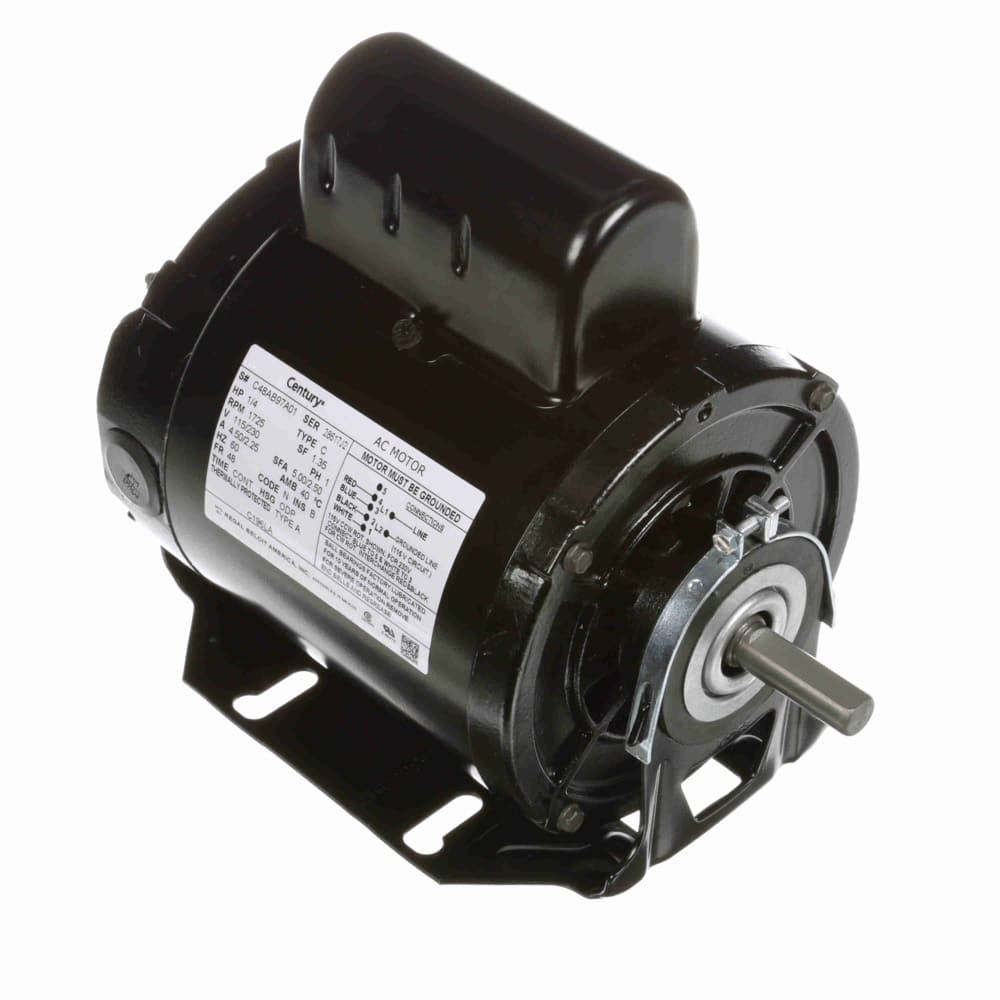

1/4HP 1PH 5.6″ ODP 1725 115/230V BM
Mfr # C196LA | Wright’s # CEN C196LA
1/4HP Fan & Blower Motor, 1 Phase, 48 Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
C196LA
Wright's #
CEN C196LA
Country of Origin
MEX
Specifications
C Dim
9.33"
Electrical Type
Capacitor Start Induction Run
Enclosure
ODP
Frame
48
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
4.50/2.25
Rated Voltage
115/230
Rotation
Reversible
RPM
1725
Service Factor
1.35
Shaft Diameter
0.5"
Speed
1725
Starting Method
Description
Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.
1/4HP Fan & Blower Motor, 1 Phase, 48 Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/230V, ODP Enclosure
