Century

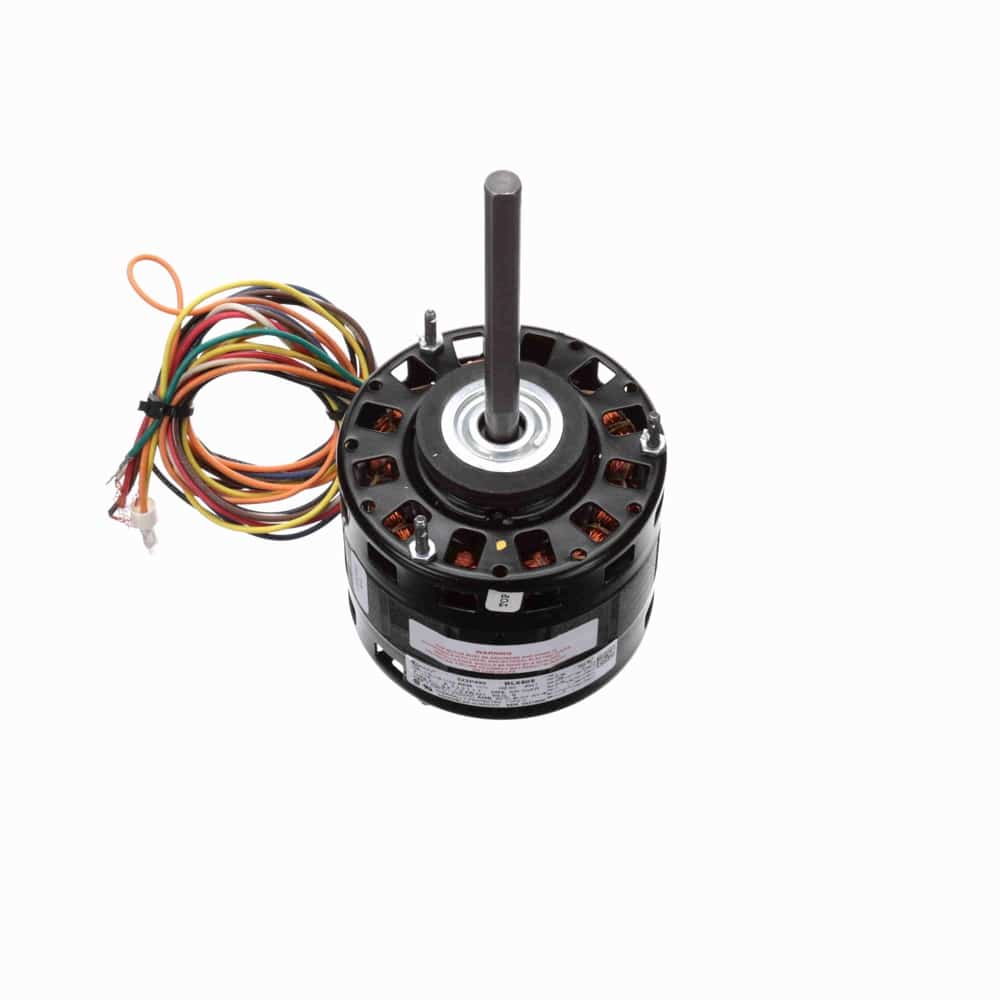

1/5HP PSC 42Y OAO 3spd 1075 115V 5uF BM
Mfr # BL6505 | Wright’s # CEN BL6505
1/5-1/8-1/10HP Fan & Blower Motor, 1 Phase, 42Y Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 115V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
BL6505
Wright's #
CEN BL6505
Specifications
C Dim
9.92"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
42Y
Frequency
60 Hz
HP
0.2 HP
HP2
1/5-1/8-1/10 HP
Insulation Class
B
kW
0.15kW
Max Ambient
40°C
Number of Poles
6
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
3.2,2.1,1.7
Rated Voltage
115
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
Furnace Blower – Air Handler – Fan Coil – Air Conditioning Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatЊ.5″ Leads
Extended Studs Shaft End, Resilient Ring Mounting, Belly Band Mounting (Belly Band Not Included)
1/5-1/8-1/10HP Fan & Blower Motor, 1 Phase, 42Y Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 115V, OAO Enclosure
