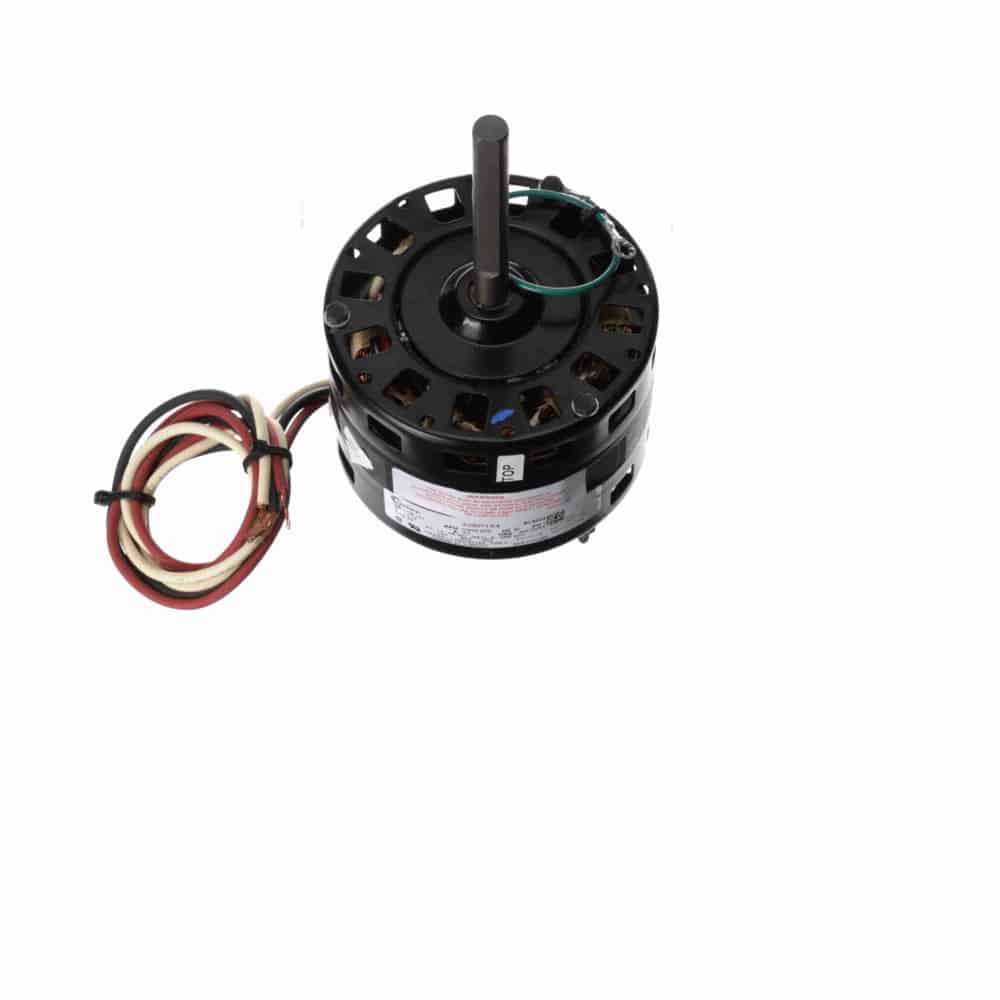

Century
1/8HP ShP 42Y OAO 2spd 1050 CWSE 115V BM
Mfr # BL6424 | Wright’s # CEN BL6424
1/8-1/11HP Fan & Blower Motor, 1 Phase, 42Y Frame, 1050 RPM, 2 Speed, Shaded Pole, 115V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
BL6424
Wright's #
CEN BL6424
Country of Origin
MEX
Specifications
C Dim
7.67"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
42Y
Frequency
60 Hz
HP
0.13 HP
HP2
1/8-1/11 HP
Insulation Class
B
kW
0.1kW
Max Ambient
40°C
Number of Poles
6
Number of Speeds
2
Overload Protection
Automatic
Phase
1
Rated Current
5
Rated Voltage
115
Rotation
Counterclockwise Lead End
RPM
1050
Service Factor
1
Shaft Diameter
0.5"
Speed
1050
Starting Method
Description
Furnace Blower – Attic Ventilator – Air Handler – Fan Coil Motor
5″ Diameter – 42 Frame
Shaded Pole
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatЃ” Leads
Extended Studs Lead End, Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)
1/8-1/11HP Fan & Blower Motor, 1 Phase, 42Y Frame, 1050 RPM, 2 Speed, Shaded Pole, 115V, OAO Enclosure
