Century
1/10HP ShP 42Y ODP 1050 CWSE 115V OEM
Mfr # BL6408 | Wright’s # CEN BL6408

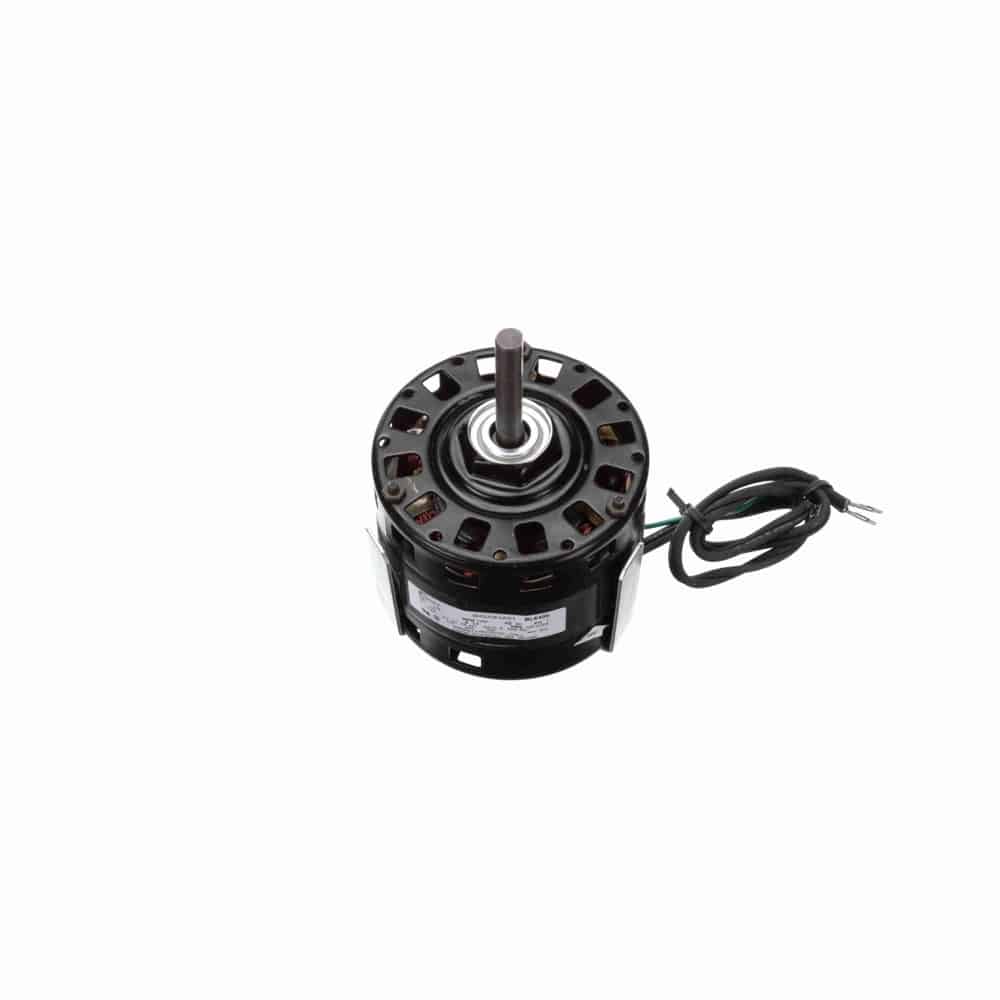

1/10HP OEM Replacement Motor, 1 Phase, 42Y Frame, 1050 RPM, 1 Speed, Shaded Pole, 115V, ODP Enclosure
$175.63
Product Information
Brand
Century
Mfr #
BL6408
Wright's #
CEN BL6408
Specifications
C Dim
7.41"
Electrical Type
Shaded Pole
Enclosure
ODP
Frame
42Y
Frequency
60 Hz
HP
0.1 HP
HP2
1/10 HP
Insulation Class
B
kW
0.07kW
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
3.9
Rated Voltage
115
Rotation
Counterclockwise Lead End
RPM
1050
Service Factor
1
Shaft Diameter
0.5"
Speed
1050
Starting Method
Description
OEM Direct Replacement Motor
5″ Diameter – 42 Frame
Shaded Pole
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatЃ” Leads with AMP Pin
1/10HP OEM Replacement Motor, 1 Phase, 42Y Frame, 1050 RPM, 1 Speed, Shaded Pole, 115V, ODP Enclosure
