Century

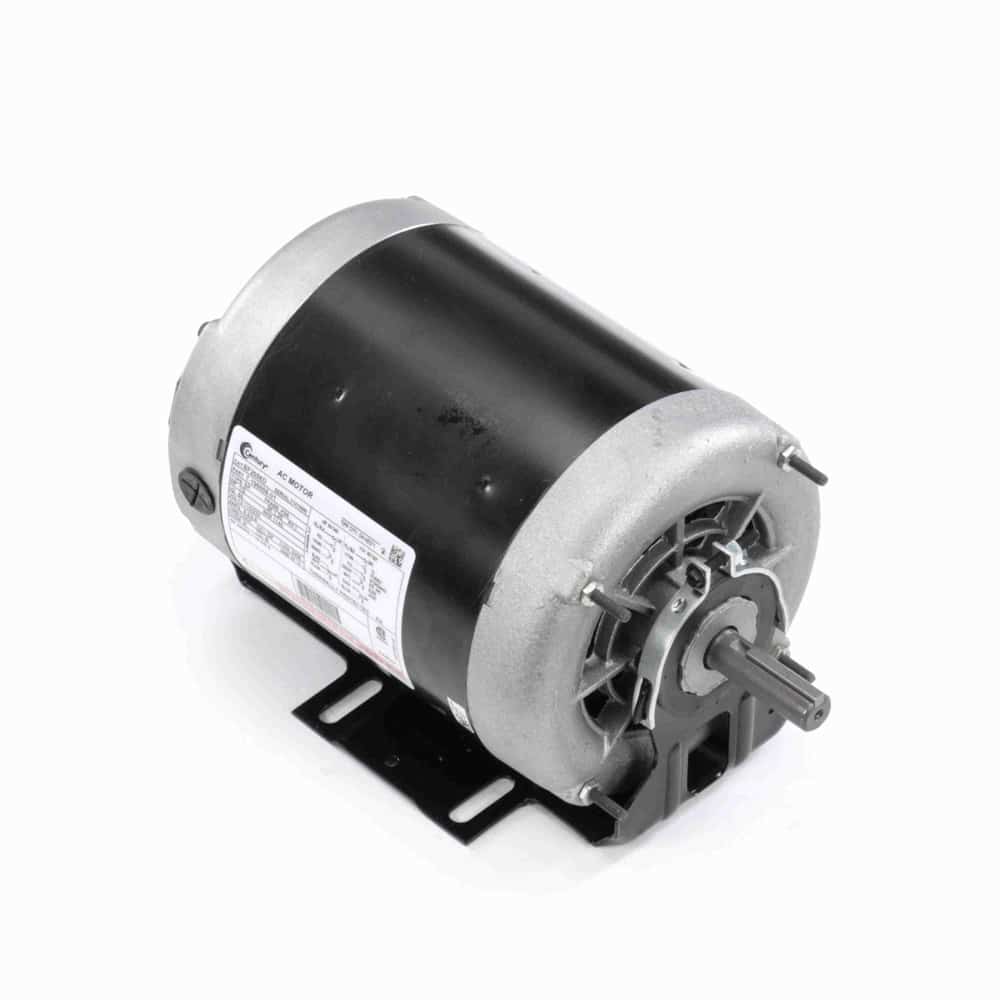

1/2HP 1PH 56 ODP 1140 115/230V BM
Mfr # BF2056D | Wright’s # CEN BF2056D
1/2HP Fan & Blower Motor, 1 Phase, 56 Frame, 1140 RPM, 1 Speed, Split Phase, Induction Run, Single Or Dual Voltage, 115/230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
BF2056D
Wright's #
CEN BF2056D
Country of Origin
MEX
Specifications
C Dim
11.44"
Electrical Type
Split Phase, Induction Run, Single Or Dual Voltage
Enclosure
ODP
Frame
56
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
9.2/4.6
Rated Voltage
115/230
Rotation
Reversible Counterclockwise
RPM
1140
Service Factor
1.25
Shaft Diameter
0.625"
Speed
1140
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use.
Double-shielded bearings extend the service life of the motor.
Automatic reset thermal protector (as noted) protects against overload.
Moderate starting torque helps reduce fan stresses.
1/2HP Fan & Blower Motor, 1 Phase, 56 Frame, 1140 RPM, 1 Speed, Split Phase, Induction Run, Single Or Dual Voltage, 115/230V, ODP Enclosure
