Century
1/3HP 1PH 56 2P ODP 3450 115/230V AOL
Mfr # B416ES | Wright’s # CEN B416ES

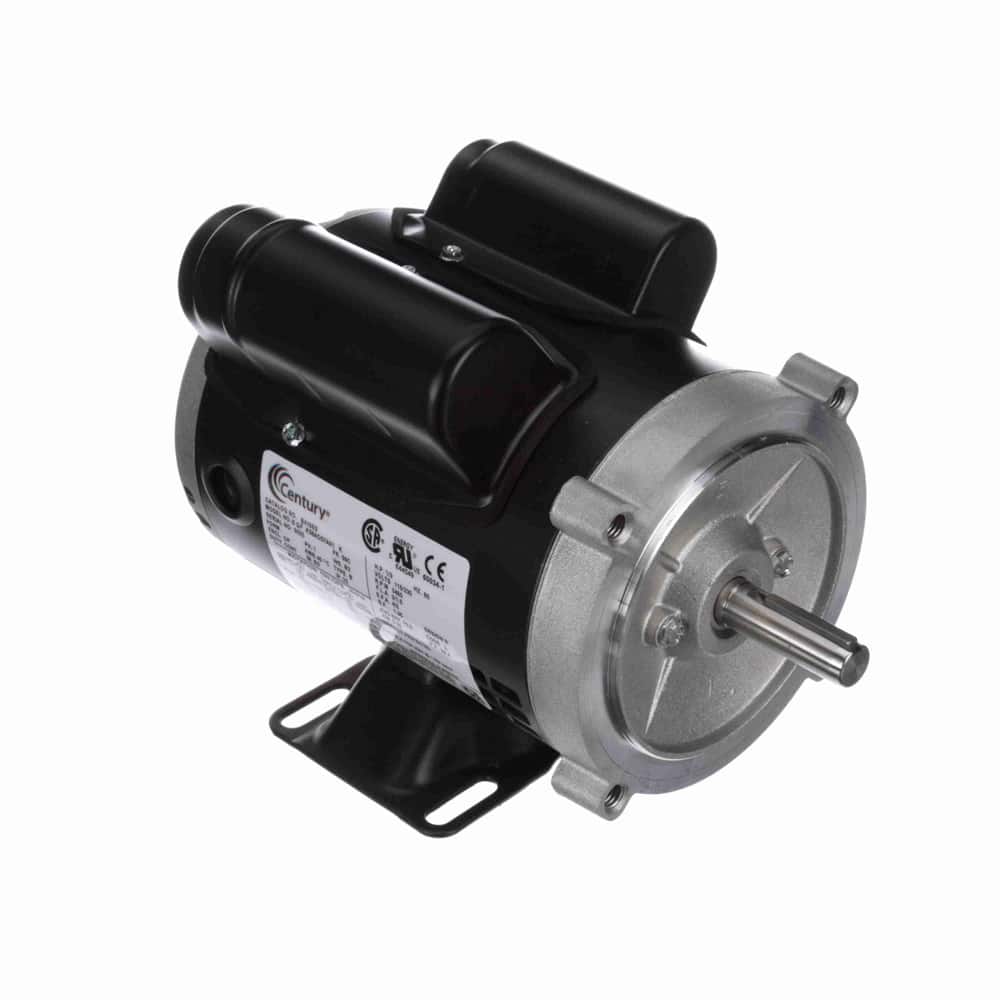

1/3HP 1-Phase General Purpose Motor, 1 Phase, 56 Frame, 3450 RPM, 1 Speed, Capacitor Start Capacitor Run, 115/230V, ODP Enclosure
$311.31
Product Information
Brand
Century
Mfr #
B416ES
Wright's #
CEN B416ES
Country of Origin
MEX
Specifications
C Dim
10.44"
Electrical Type
Capacitor Start Capacitor Run
Enclosure
ODP
Frame
56
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
3.0/1.5
Rated Voltage
115/230
Rotation
Clockwise/Counterclockwise
RPM
3450
Service Factor
1.35
Shaft Diameter
0.625"
Speed
3450
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Premium efficiency promotes improved reliability.
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
1/3HP 1-Phase General Purpose Motor, 1 Phase, 56 Frame, 3450 RPM, 1 Speed, Capacitor Start Capacitor Run, 115/230V, ODP Enclosure
