Century

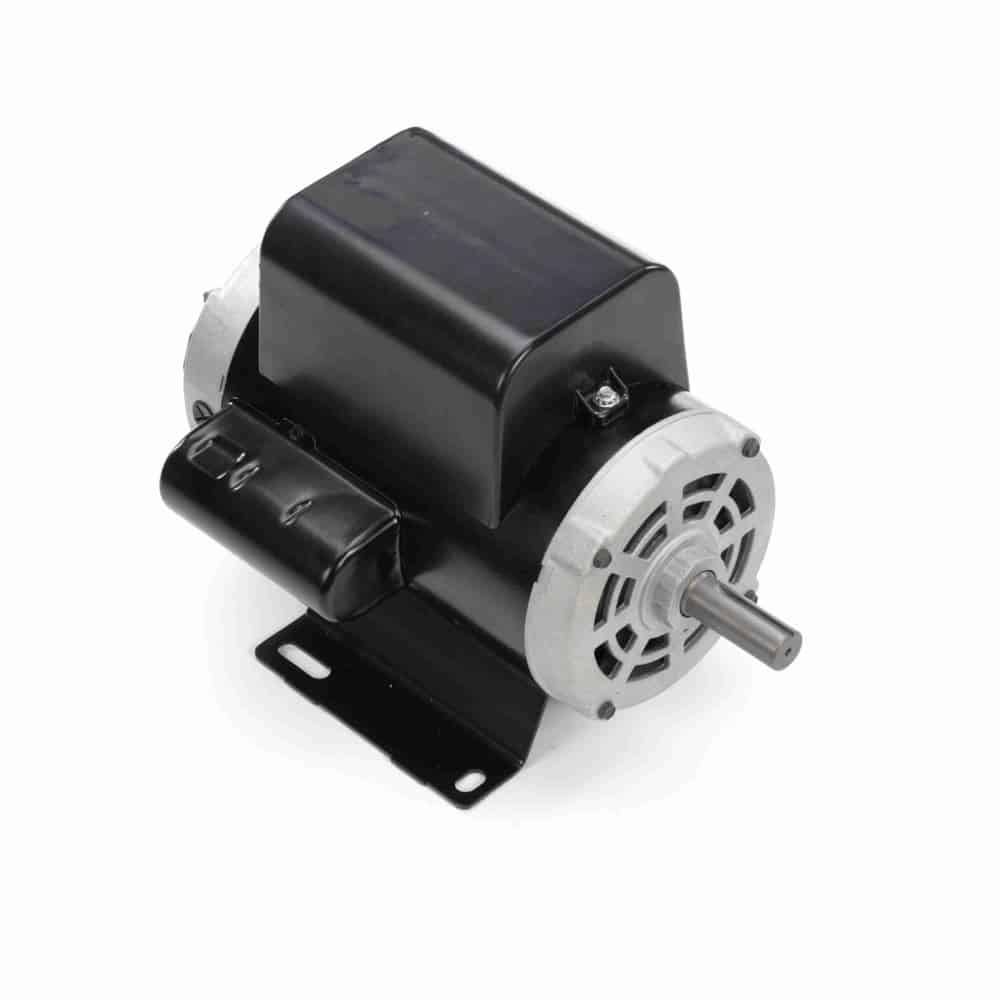

6HP 1PH 56Y 2P ODP 3450 230V MOL CM
Mfr # B387 | Wright’s # CEN B387
6HP Compressor Motor, 1 Phase, 56Y Frame, 3450 RPM, 1 Speed, Capacitor Start, Capacitor Run, Single Or Dual Voltage, 230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
B387
Wright's #
CEN B387
Country of Origin
MEX
Specifications
C Dim
14.56"
Electrical Type
Capacitor Start, Capacitor Run, Single Or Dual Voltage
Enclosure
ODP
Frame
56Y
Frequency
60 Hz
HP
6 HP
HP2
6 HP
Insulation Class
F
kW
4.5kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Manual
Phase
1
Rated Current
24
Rated Voltage
230
Rotation
Clockwise
RPM
3450
Service Factor
1
Shaft Diameter
0.875"
Speed
3450
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use.
High starting torque on start-up, to achieve a higher starting load required in air compressor applications.
Capacitor start or capacitor run for low-amp, high-efficiency, as noted.
Heavy-duty construction ensures motor durability.
6HP Compressor Motor, 1 Phase, 56Y Frame, 3450 RPM, 1 Speed, Capacitor Start, Capacitor Run, Single Or Dual Voltage, 230V, ODP Enclosure
