Century

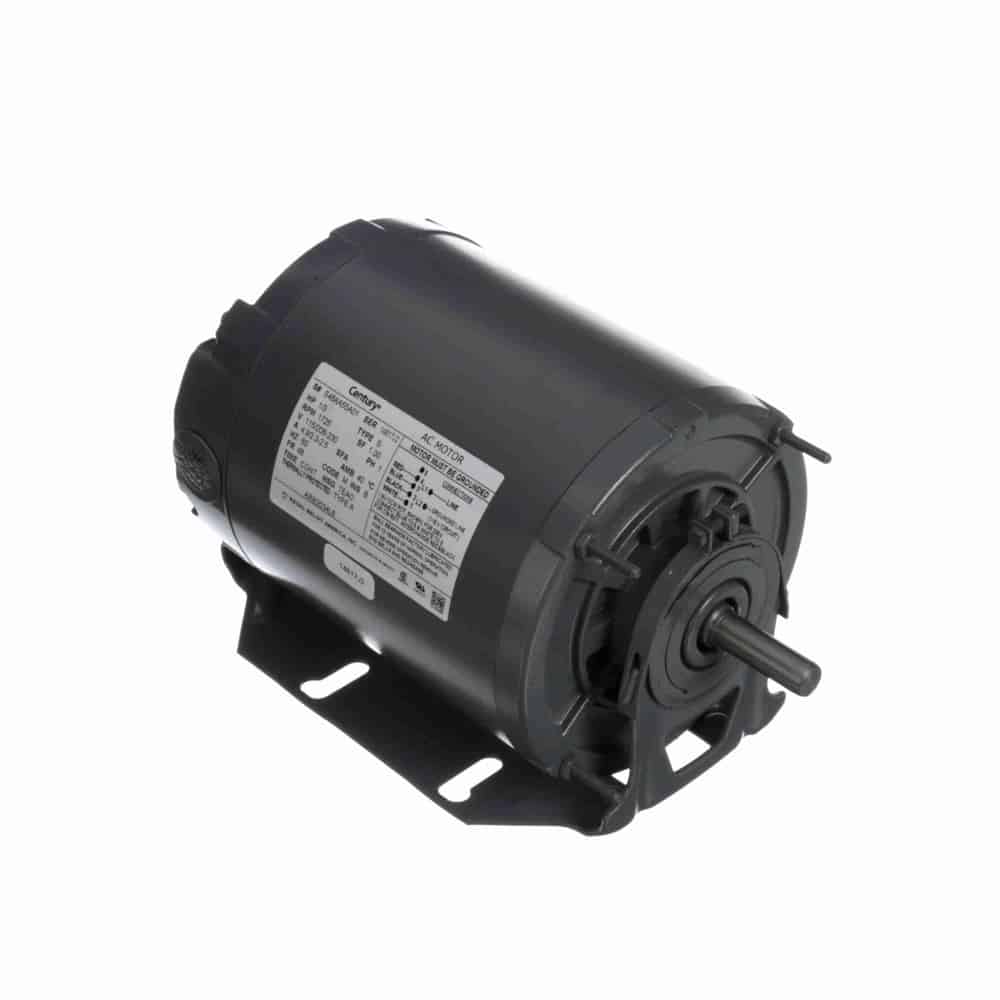

1/3HP 1PH 5.6″ TE 1725 REV 115/208-230V BM
Mfr # ARB2034L6 | Wright’s # CEN ARB2034L6
1/3HP Fan & Blower Motor, 1 Phase, 48 Frame, 1725 RPM, 1 Speed, Split Phase, 115/208-230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
ARB2034L6
Wright's #
CEN ARB2034L6
Country of Origin
MEX
Specifications
C Dim
9.8"
Electrical Type
Split Phase
Enclosure
TEAO
Full Load Efficiency
62
Frame
48
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
4.9/2.3-2.5
Rated Voltage
115/208-230
Rotation
Reversible
RPM
1725
Service Factor
1
Shaft Diameter
0.655"
Speed
1725
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use.
Double-shielded bearings extend the service life of the motor.
Automatic reset thermal protector (as noted) protects against overload.
Moderate starting torque helps reduce fan stresses.
1/3HP Fan & Blower Motor, 1 Phase, 48 Frame, 1725 RPM, 1 Speed, Split Phase, 115/208-230V, TEAO Enclosure
