Century
1/6HP 1PH 48Y TE 1725 REV 115/208-230V BM
Mfr # ARB2014L2 | Wright’s # CEN ARB2014L2

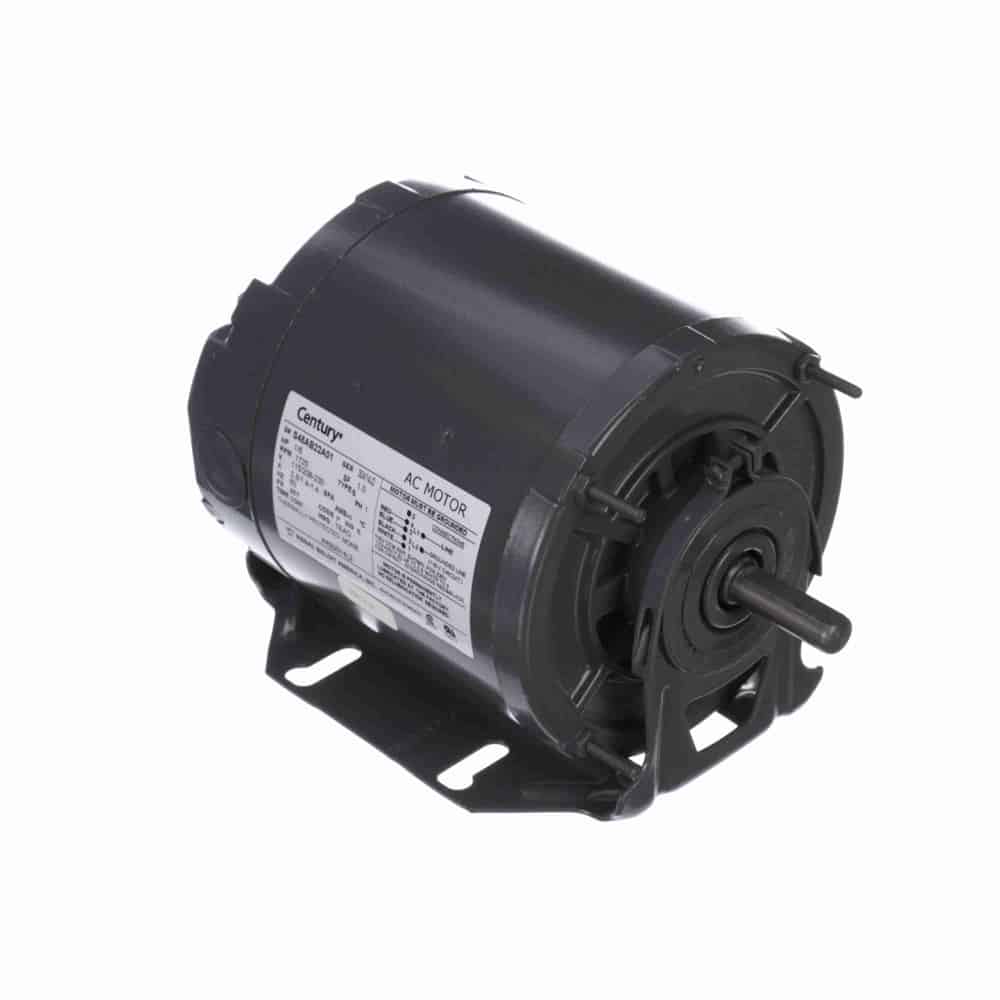

1/6HP Fan & Blower Motor, 1 Phase, 48Y Frame, 1725 RPM, 1 Speed, Split Phase, 115/208-230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
ARB2014L2
Wright's #
CEN ARB2014L2
Country of Origin
MEX
Specifications
C Dim
8.83"
Electrical Type
Split Phase
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.17 HP
HP2
1/6 HP
Insulation Class
B
kW
0.13kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
2.8/1.4-1.4
Rated Voltage
115/208-230
Rotation
Reversible
RPM
1725
Service Factor
1
Shaft Diameter
0.5"
Speed
1725
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use.
Double-shielded bearings extend the service life of the motor.
Automatic reset thermal protector (as noted) protects against overload.
Moderate starting torque helps reduce fan stresses.
1/6HP Fan & Blower Motor, 1 Phase, 48Y Frame, 1725 RPM, 1 Speed, Split Phase, 115/208-230V, TEAO Enclosure
