Century

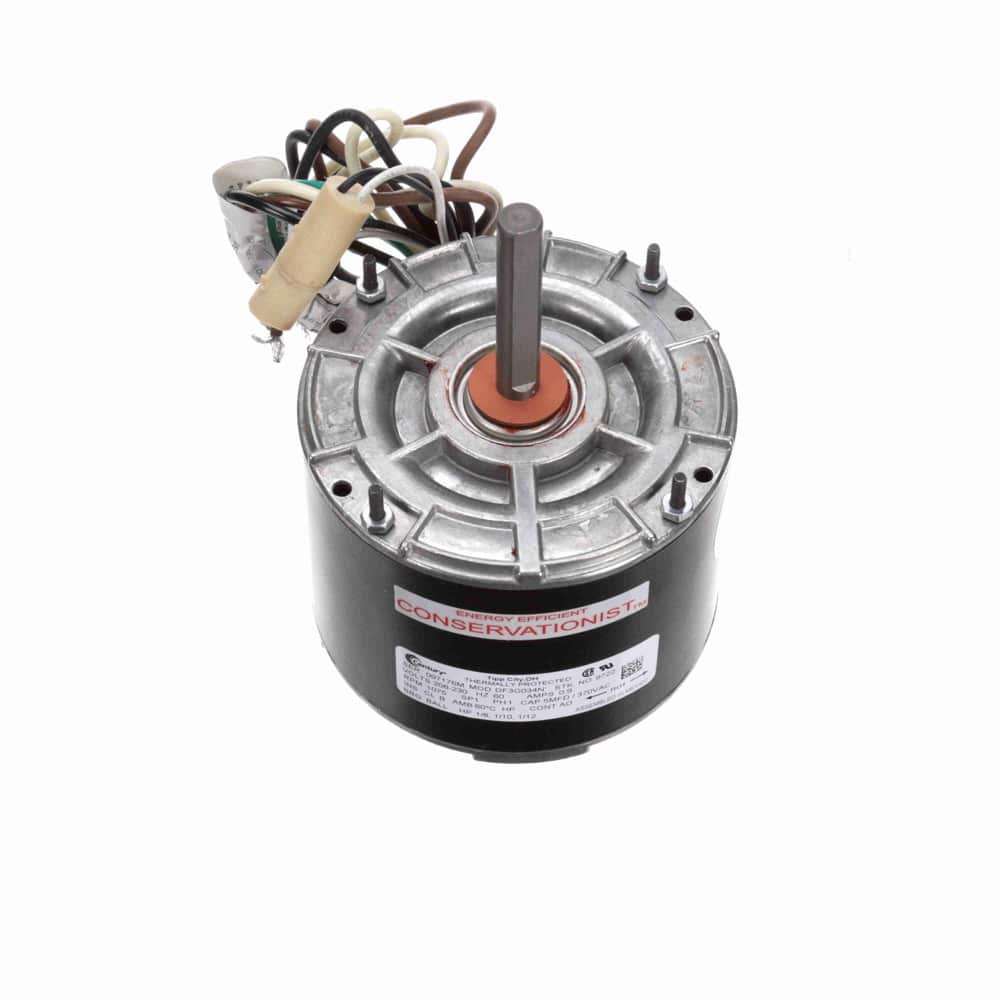

1/8HP PSC 5″ TE 1075 REV 208-230V 5uF CF
Mfr # 9722 | Wright’s # CEN 9722
1/8-1/10-1/12HP Condenser Fan Motor, 1 Phase, 42 Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Sub-Brand
MULTIFIT®
Mfr #
9722
Wright's #
CEN 9722
Country of Origin
IND
Specifications
C Dim
7.5"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
42
Frequency
60 Hz
HP
0.13 HP
HP2
1/8-1/10-1/12 HP
Insulation Class
F
kW
0.1kW
Material
Rolled Steel
Max Ambient
70°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
0.9
Rated Voltage
208-230
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
MultiFit – Condenser Fan Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-440 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class F Insulation, 60°/70°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatЌ” Leads
Multi-Mounting System™ (4.33, 4.42, 4.62 Bolt Circle), Extend Studs Shaft End and Opposite Shaft End
1/8-1/10-1/12HP Condenser Fan Motor, 1 Phase, 42 Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
