Century
1/20HP ShP 5″ OAO 3spd 1050 CCWSE 115V
Mfr # 9615 | Wright’s # CEN 9615

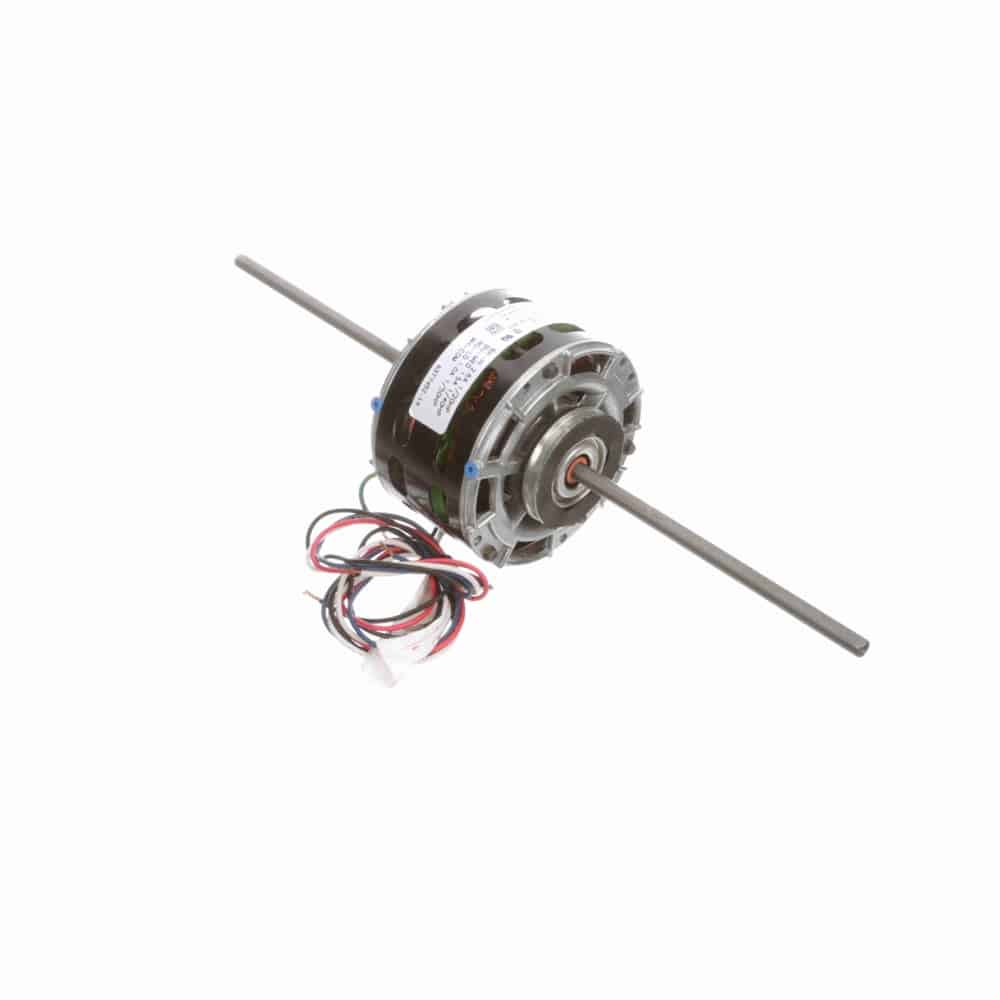

1/20-1/40-1/50HP Fan Coil & Air Conditioner Motor, 1 Phase, 42 Frame, 1050 RPM, 3 Speed, Shaded Pole, 115V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
9615
Wright's #
CEN 9615
Country of Origin
MEX
Specifications
C Dim
17.63"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
42
Frequency
60 Hz
HP
0.05 HP
HP2
1/20-1/40-1/50 HP
Insulation Class
A
kW
0.04kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
2.6
Rated Voltage
115
Rotation
Clockwise Lead End
RPM
1050
Service Factor
1
Shaft Diameter
0.375"
Speed
1050
Starting Method
Description
Fan Coil – Dual Wheel Blower Motor
5″ Diameter – 42 Frame
Shaded Pole
Thermally Protected
Open Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
3/8″ Diameter Double Shaft with FlatЉ” Leads
Resilient Ring Mounting
1/20-1/40-1/50HP Fan Coil & Air Conditioner Motor, 1 Phase, 42 Frame, 1050 RPM, 3 Speed, Shaded Pole, 115V, OAO Enclosure
