Century

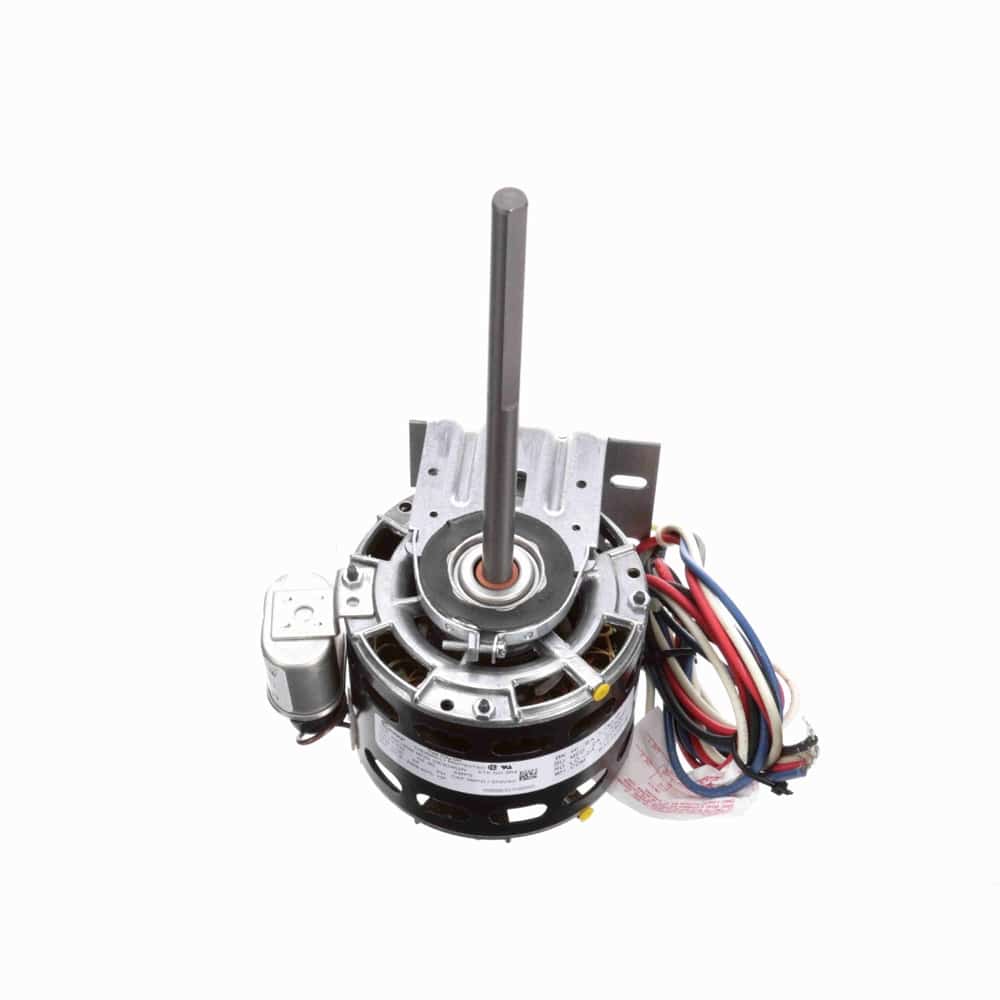

1/30HP PSC 5″ OAO 3spd 1100 CCWSE 115V 5uF-inc OEM
Mfr # 954 | Wright’s # CEN 954
1/30-1/150-1/200HP OEM Replacement Motor, 1 Phase, 42 Frame, 1100 RPM, 3 Speed, Permanent Split Capacitor, 115V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
954
Wright's #
CEN 954
Country of Origin
MEX
Specifications
C Dim
12.49"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
42
Frequency
60 Hz
HP
0.03 HP
HP2
1/30-1/150-1/200 HP
Insulation Class
B
kW
0.02kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
3
Overload Protection
Thermally Protected
Phase
1
Rated Current
0.6
Rated Voltage
115
Rotation
Counterclockwise Shaft End
RPM
1100
Service Factor
1
Shaft Diameter
0.5"
Speed
1100
Starting Method
Description
Furnace Blower – Air Handler – Fan Coil – Air Conditioning Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatА” Leads
Resilient Base
1/30-1/150-1/200HP OEM Replacement Motor, 1 Phase, 42 Frame, 1100 RPM, 3 Speed, Permanent Split Capacitor, 115V, OAO Enclosure
