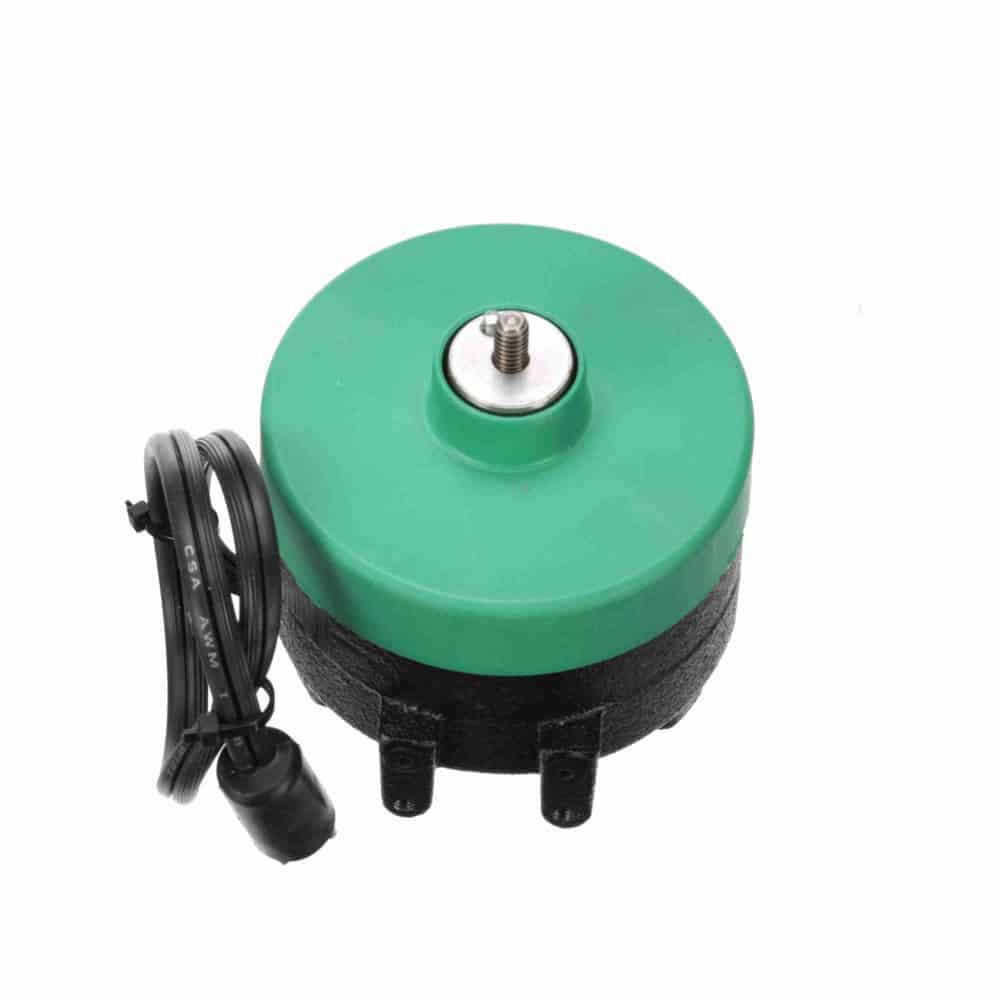

Century
14-15-16W ECM 1550 CWLE 115V 0.47-0.58A CI
Mfr # 9208F2 | Wright’s # CEN 9208F2
HP 14-15-16W Unit Bearing Motor, 1 Phase, UNIT BEARING Frame, 1550 RPM, 1 Speed, Electronically Commutated Motor, 115V, TEAO Enclosure
$182.28
Product Information
Brand
Century
Sub-Brand
iMotor®
Mfr #
9208F2
Wright's #
CEN 9208F2
Specifications
Electrical Type
Electronically Commutated Motor
Enclosure
TEAO
Frame
UNIT BEARING
Frequency
60 Hz
Insulation Class
A
Material
Cast Iron
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
0.47-0.58
Rated Voltage
115
Rotation
Clockwise Lead End
RPM
1550
Service Factor
1
Shaft Diameter
0.25"
Speed
1550
Starting Method
Watt
14-15-16
Description
iMotorâ„¢ – Refrigeration Motor
Unit Bearing
Electronically Commutated (ECM)
Thermally Protected
Totally Enclosed Air Over
Class A Insulation, 40°C Ambient
Bearing – Unit
1/4 x 20 Threaded ShaftÏ·” Leads with Molded Plug
Extended Studs Shaft End
HP 14-15-16W Unit Bearing Motor, 1 Phase, UNIT BEARING Frame, 1550 RPM, 1 Speed, Electronically Commutated Motor, 115V, TEAO Enclosure
