Century

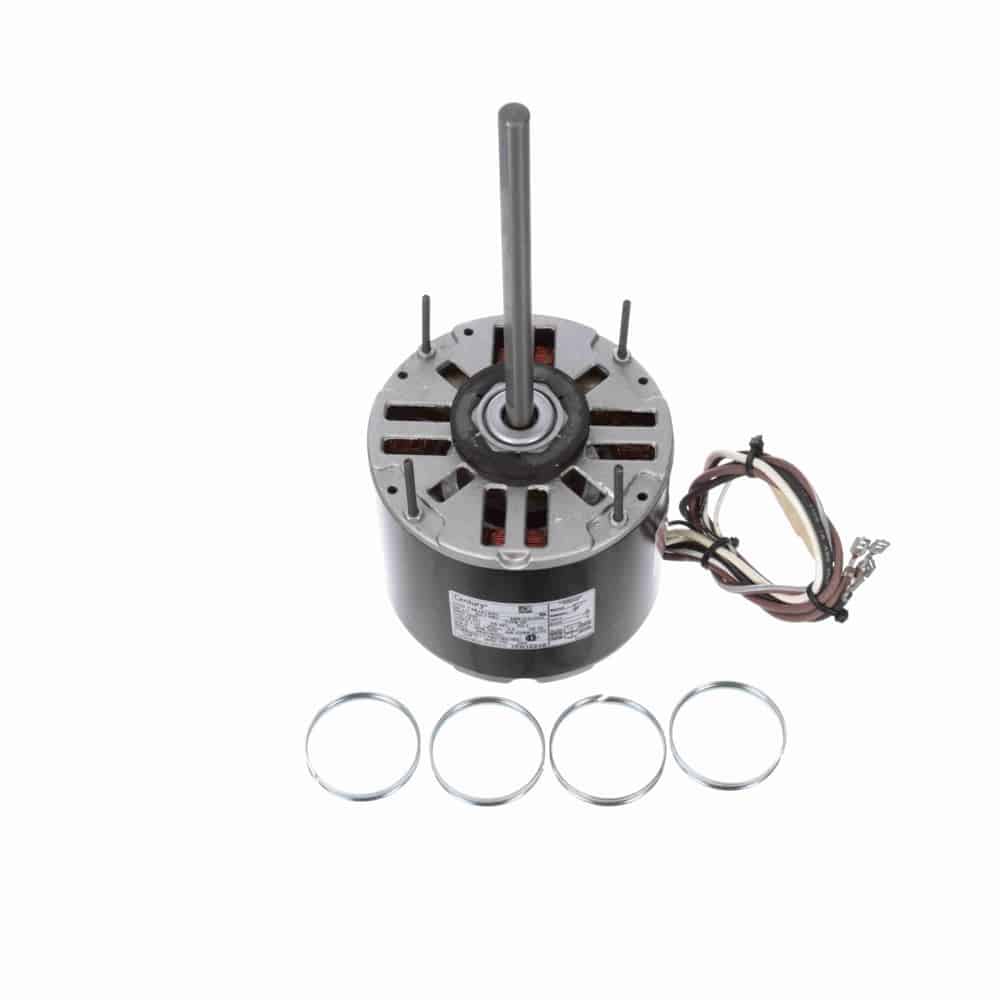

1/4HP PSC 48Y TE 1625 REV 277V 3uF BM
Mfr # 7FD1024S | Wright’s # CEN 7FD1024S
1/4HP Fan & Blower Motor, 1 Phase, 48Y Frame, 1625 RPM, 1 Speed, Permanent Split Capacitor, 277V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
7FD1024S
Wright's #
CEN 7FD1024S
Country of Origin
MEX
Specifications
C Dim
12.99"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
A
kW
0.19kW
Material
Rolled Steel
Max Ambient
50°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
1.35
Rated Voltage
277
Rotation
Reversible
RPM
1625
Service Factor
1
Shaft Diameter
0.5"
Speed
1625
Starting Method
Description
Direct Drive Fan & Blower Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 3 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Semi-Enclosed Air Over
Class A Insulation, 50°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatϷ” Leads with Quick Connect Terminals
Extended Studs Shaft End, Resilient Ring Mounting
