Century

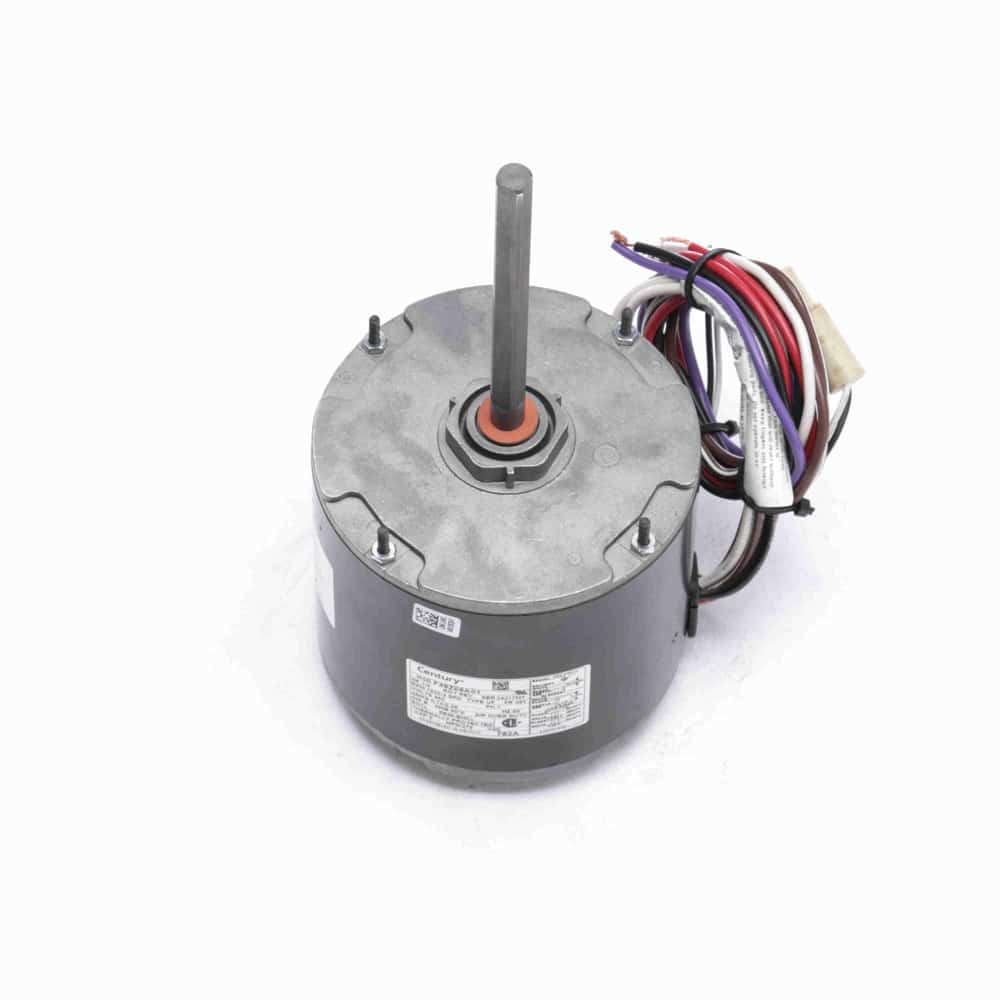

1/4HP PSC 48Y TE 2spd 1625 REV 460V 5uF CF
Mfr # 782A | Wright’s # CEN 782A
1/4HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1625 RPM, 2 Speed, Permanent Split Capacitor, 460V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
782A
Wright's #
CEN 782A
Specifications
C Dim
11.36"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
60°C
Number of Poles
4
Number of Speeds
2
Overload Protection
Automatic
Phase
1
Rated Current
0.74/0.58
Rated Voltage
460
Rotation
Reversible
RPM
1625
Service Factor
1
Shaft Diameter
0.5"
Speed
1625
Starting Method
Description
Condenser Fan – Heat Pump – Refrigeration Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Semi-Enclosed Air Over
Class B Insulation, 60°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatЃ” Leads
Extended Studs Shaft End
1/4HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1625 RPM, 2 Speed, Permanent Split Capacitor, 460V, TEAO Enclosure
