Century

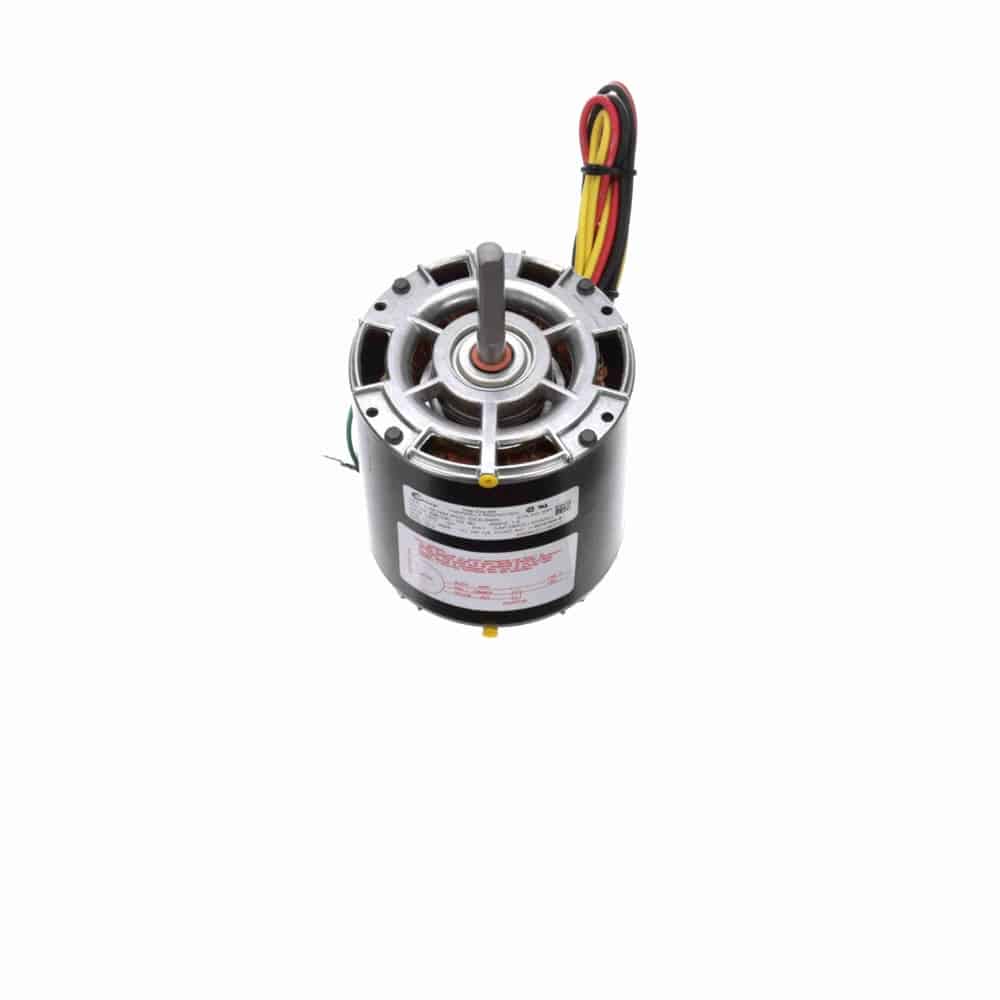

1/4HP PSC 5″ TE 1075 CCWSE 208-230V 5uF OEM
Mfr # 691 | Wright’s # CEN 691
1/4HP OEM Replacement Motor, 1 Phase, 42 Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
691
Wright's #
CEN 691
Country of Origin
MEX
Specifications
C Dim
7.96"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
42
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
A
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.5
Rated Voltage
208-230
Rotation
Counterclockwise Shaft End
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
OEM Direct Replacement Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Semi-Enclosed Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatЌ” Leads with Quick Connect Terminals
1/4HP OEM Replacement Motor, 1 Phase, 42 Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
