Century

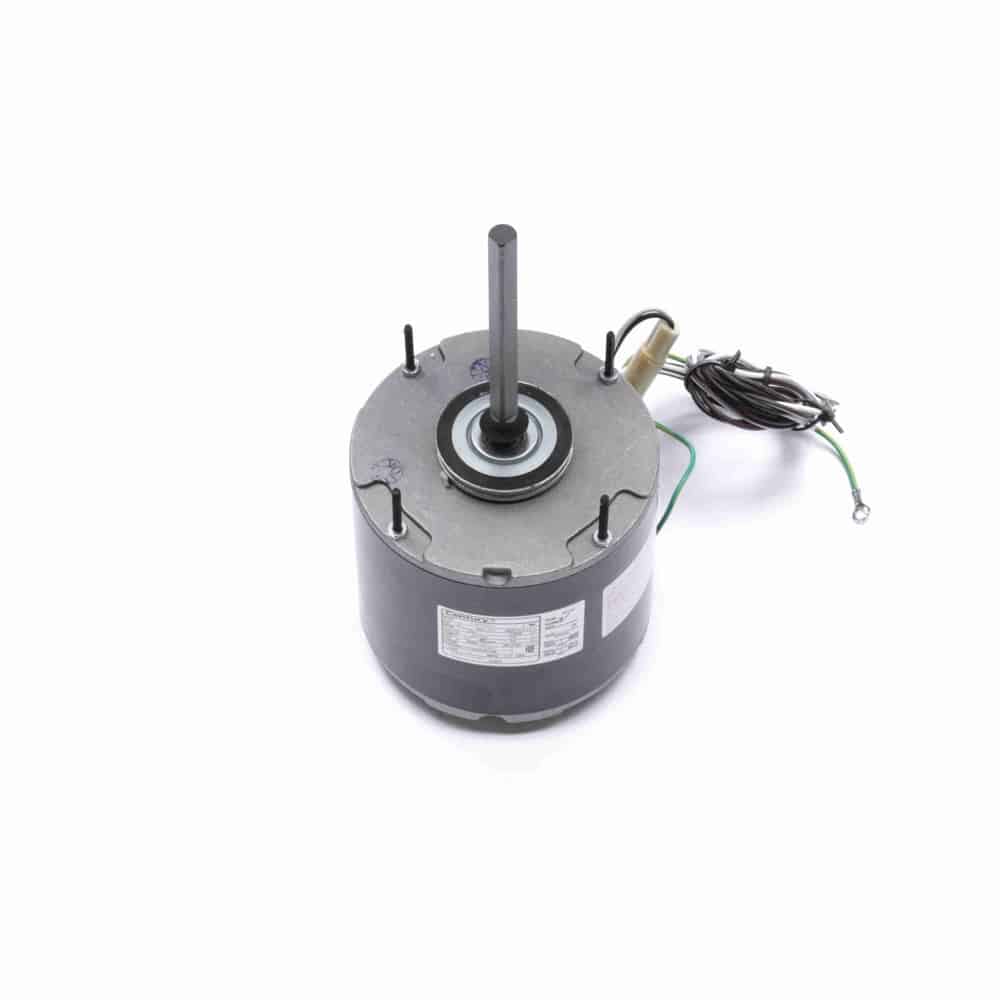

1/2HP PSC 48Y TE 1625 REV 208-230V 5uF CF
Mfr # 666A | Wright’s # CEN 666A
1/2HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1625 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
666A
Wright's #
CEN 666A
Country of Origin
MEX
Specifications
C Dim
11.38"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
60°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
3.9
Rated Voltage
208-230
Rotation
Reversible
RPM
1625
Service Factor
1
Shaft Diameter
0.5"
Speed
1625
Starting Method
