Century

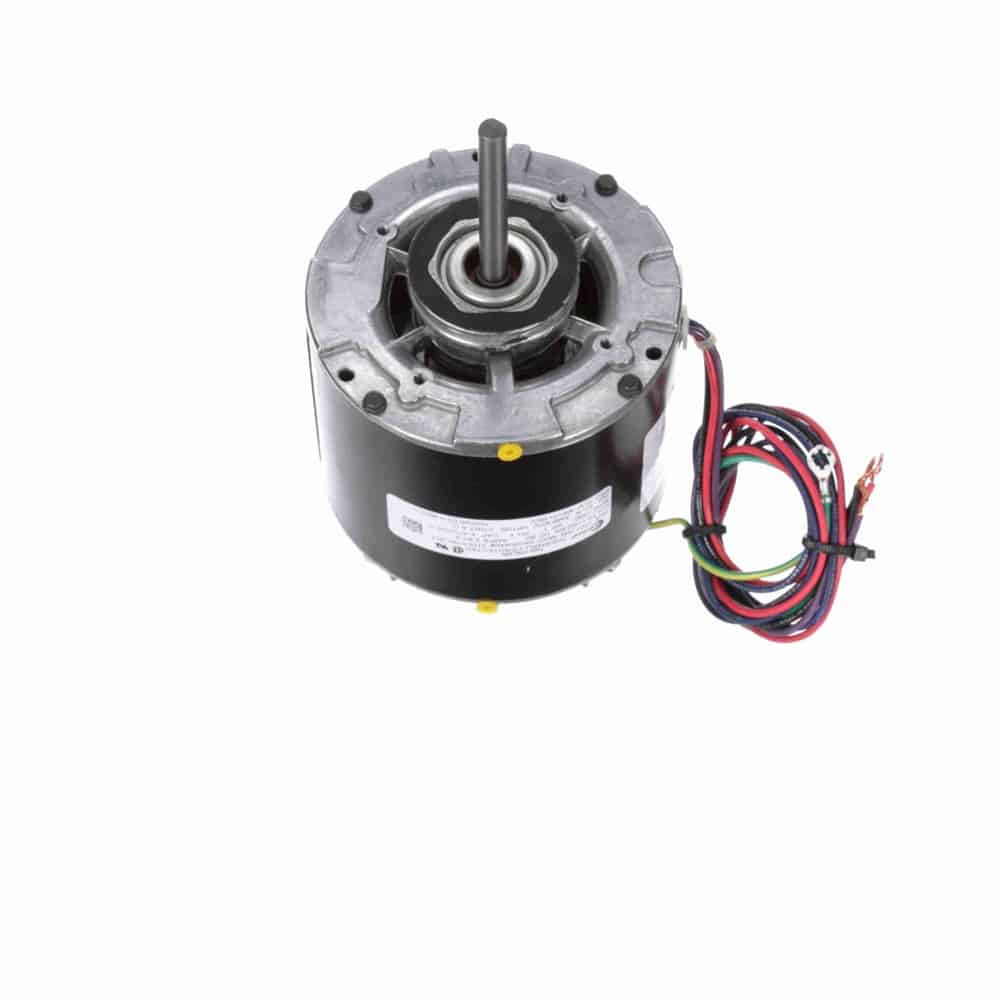

1/20HP ShP 5″ OAO 1550 CCWSE 115/230V RF
Mfr # 611 | Wright’s # CEN 611
1/20HP Refrigeration Motor, 1 Phase, 42 Frame, 1550 RPM, 1 Speed, Shaded Pole, 115/230V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
611
Wright's #
CEN 611
Country of Origin
MEX
Specifications
C Dim
7.96"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
42
Frequency
60 Hz
HP
0.05 HP
HP2
1/20 HP
Insulation Class
A
kW
0.04kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
2.4/1.2
Rated Voltage
115/230
Rotation
Counterclockwise Shaft End
RPM
1550
Service Factor
1
Shaft Diameter
0.375"
Speed
1550
Starting Method
Description
Refrigeration – Unit Heater – Space Heater Motor
5″ Diameter – 42 Frame
Shaded Pole
Thermally Protected
Open Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
3/8″ Diameter Shaft with FlatІ” Leads
Tapped Holes for Shaft End Mounting, Resilient Ring Mounting
1/20HP Refrigeration Motor, 1 Phase, 42 Frame, 1550 RPM, 1 Speed, Shaded Pole, 115/230V, OAO Enclosure
