Century

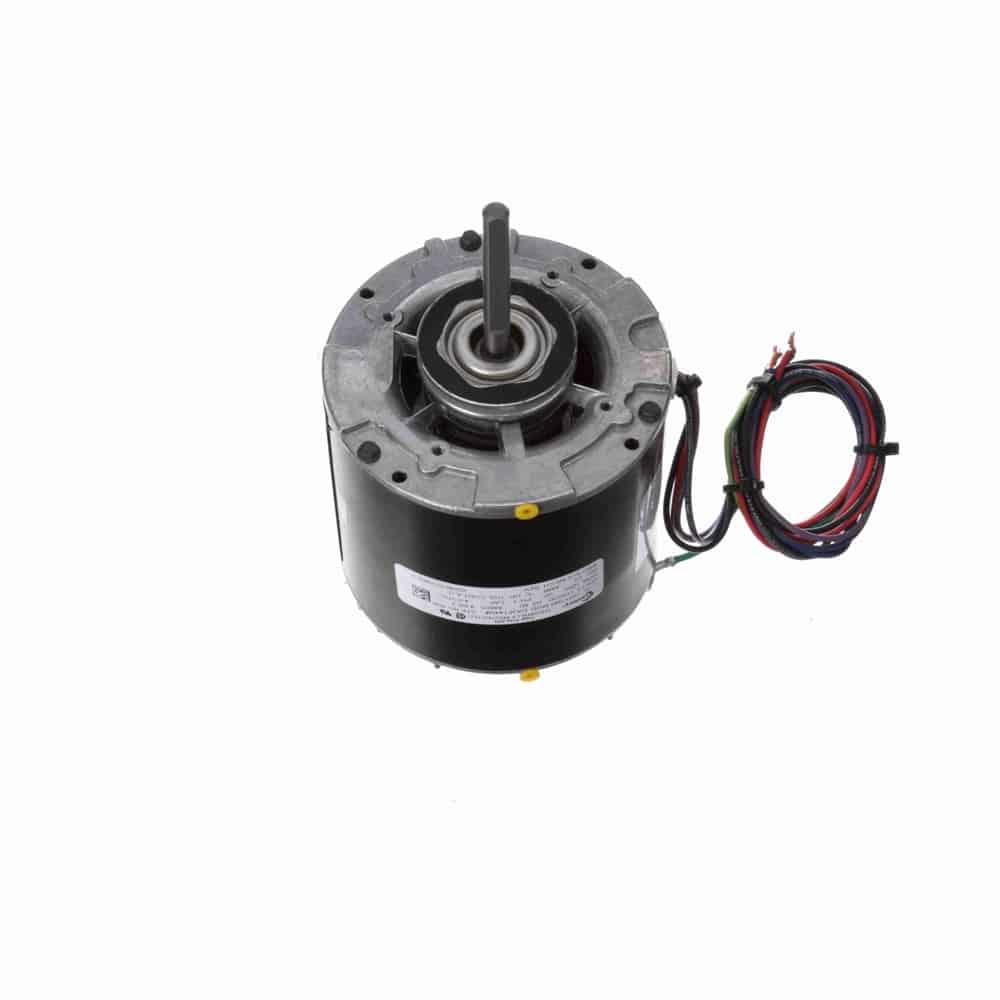

1/10HP ShP 5″ OAO 1050 CCWSE 115/230V RF
Mfr # 609 | Wright’s # CEN 609
1/10HP Refrigeration Motor, 1 Phase, 42 Frame, 1050 RPM, 1 Speed, Shaded Pole, 115/230V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
609
Wright's #
CEN 609
Country of Origin
MEX
Specifications
C Dim
8.87"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
42
Frequency
60 Hz
HP
0.1 HP
HP2
1/10 HP
Insulation Class
A
kW
0.07kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
4.6/2.3
Rated Voltage
115/230
Rotation
Counterclockwise Shaft End
RPM
1050
Service Factor
1
Shaft Diameter
0.375"
Speed
1050
Starting Method
Description
Refrigeration – Unit Heater – Space Heater Motor
5″ Diameter – 42 Frame
Shaded Pole
Thermally Protected
Open Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
3/8″ Diameter Shaft with FlatІ” Leads
Tapped Holes for Shaft End Mounting, Resilient Ring Mounting
1/10HP Refrigeration Motor, 1 Phase, 42 Frame, 1050 RPM, 1 Speed, Shaded Pole, 115/230V, OAO Enclosure
