Century

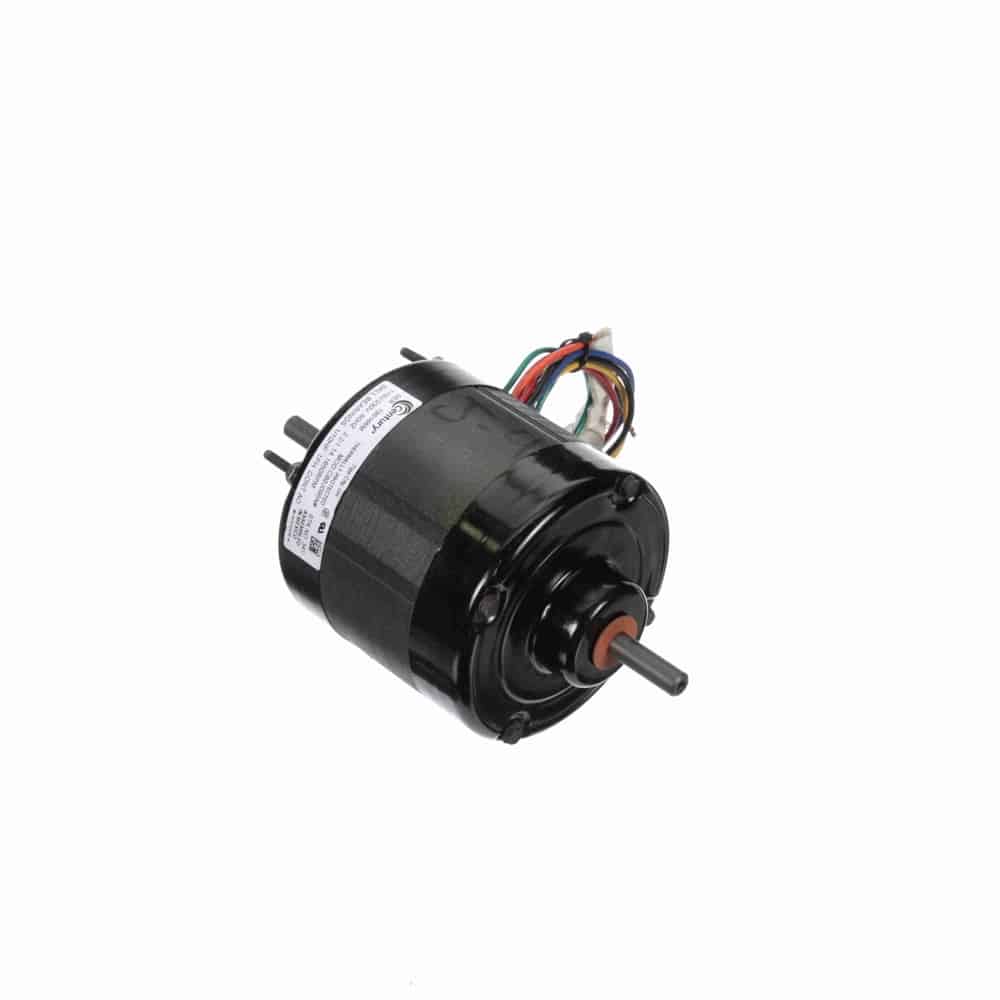

1/10HP ShP 4.4″ ODP 1650 CWSE 115/230V
Mfr # 341 | Wright’s # CEN 341
1/10HP Fan Coil & Air Conditioner Motor, 1 Phase, 4.4 Frame, 1650 RPM, 1 Speed, Shaded Pole, 115/230V, ODP Enclosure
$351.05
Product Information
Brand
Century
Mfr #
341
Wright's #
CEN 341
Country of Origin
MEX
Specifications
C Dim
8"
Electrical Type
Shaded Pole
Enclosure
ODP
Frame
4.4
Frequency
60 Hz
HP
0.1 HP
HP2
1/10 HP
Insulation Class
B
kW
0.07kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
2.2/1.1
Rated Voltage
115/230
Rotation
Counterclockwise Lead End
RPM
1650
Service Factor
1
Shaft Diameter
0.375"
Speed
1650
Starting Method
Description
Fan Coil Motor
4.4″ Diameter
Shaded Pole
Thermally Protected
Totally Enclosed Air Over
Class A Insulation, 40°C Ambient
Ball Bearing
3/8″ Diameter Double Shaft with Flatϴ” Leads
Extended Studs Lead End, Resilient Ring Mounting
1/10HP Fan Coil & Air Conditioner Motor, 1 Phase, 4.4 Frame, 1650 RPM, 1 Speed, Shaded Pole, 115/230V, ODP Enclosure
