Century

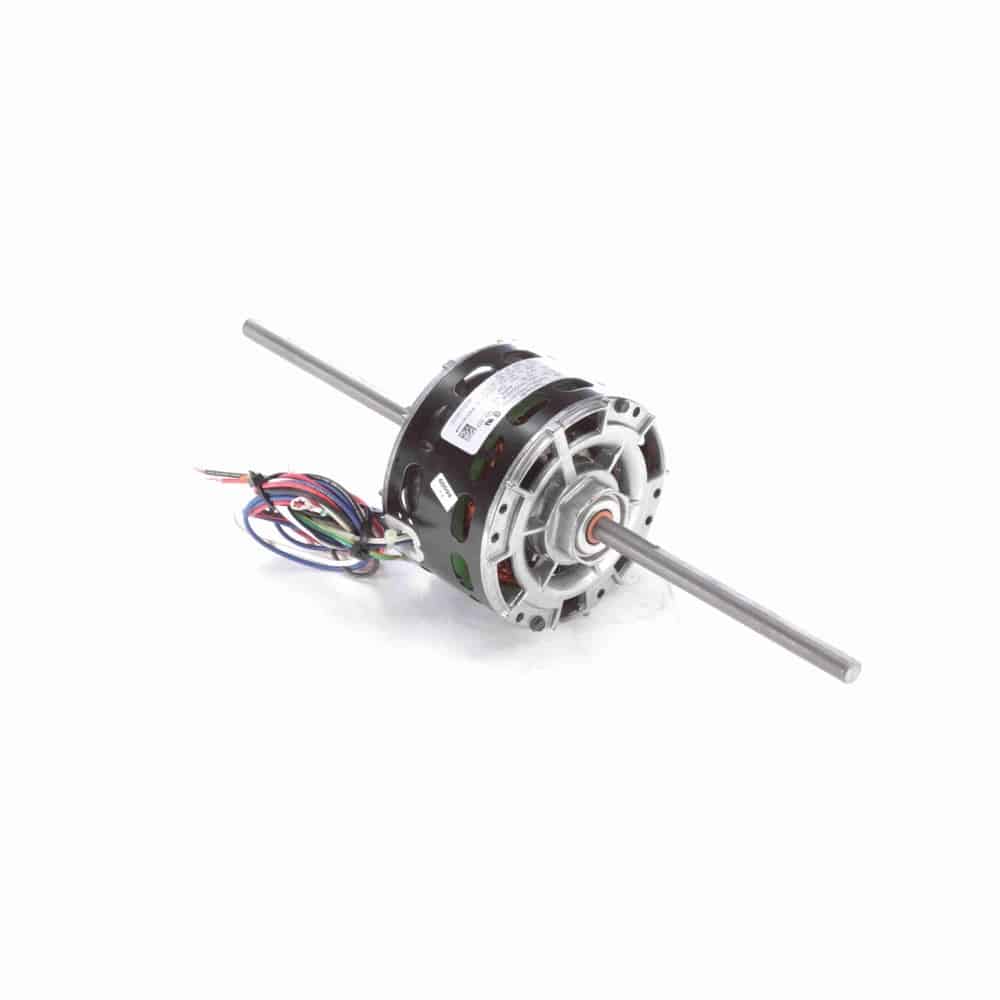

1/12HP ShP 5″ OAO 3spd 1550 CCWSE 115V
Mfr # 323 | Wright’s # CEN 323
1/12-1/20-1/30HP Fan Coil & Air Conditioner Motor, 1 Phase, 42 Frame, 1550 RPM, 3 Speed, Shaded Pole, 115V, OAO Enclosure
$224.05
Product Information
Brand
Century
Mfr #
323
Wright's #
CEN 323
Country of Origin
MEX
Specifications
C Dim
17"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
42
Frequency
60 Hz
HP
0.08 HP
HP2
1/12-1/20-1/30 HP
Insulation Class
A
kW
0.06kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
3.2
Rated Voltage
115
Rotation
Clockwise Lead End
RPM
1550
Service Factor
1
Shaft Diameter
0.5"
Speed
1550
Starting Method
Description
Fan Coil – Dual Wheel Blower Motor
5″ Diameter – 42 Frame
Shaded Pole
Thermally Protected
Open Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Double Shaft with FlatИ” Leads
Hex Mounting Hubs
1/12-1/20-1/30HP Fan Coil & Air Conditioner Motor, 1 Phase, 42 Frame, 1550 RPM, 3 Speed, Shaded Pole, 115V, OAO Enclosure
