Century

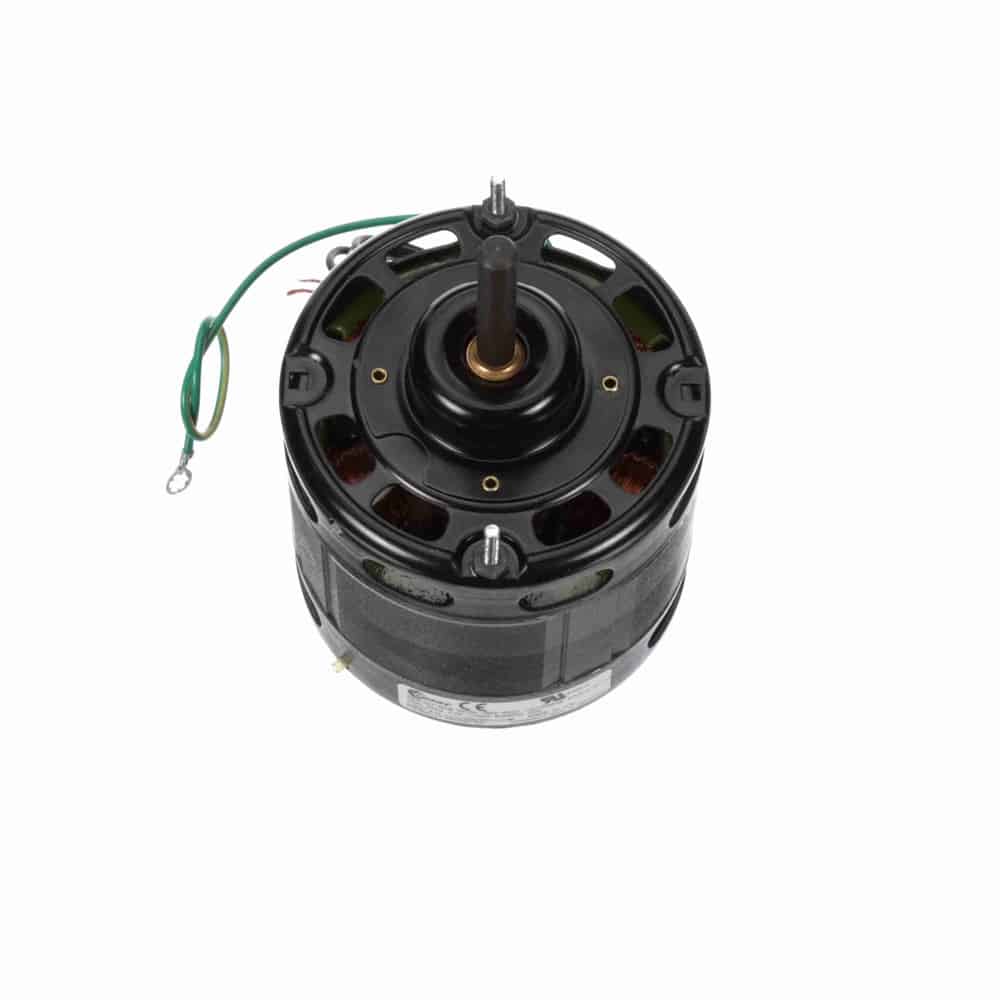

1/10HP ShP 4.4″ OAO 850 CCWSE 230V
Mfr # 309 | Wright’s # CEN 309
1/10HP Ventilation Motor, 1 Phase, 4.4 Frame, 850 RPM, 1 Speed, Shaded Pole, 230V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
309
Wright's #
CEN 309
Country of Origin
GBR
Specifications
C Dim
6.54"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
4.4
Frequency
60 Hz
HP
0.1 HP
HP2
1/10 HP
Insulation Class
B
kW
0.07kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
8
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
2.2
Rated Voltage
230
Rotation
Counterclockwise Shaft End
RPM
850
Service Factor
1
Shaft Diameter
0.375"
Speed
850
Starting Method
Description
Heating – Ventilating – Welding Unit Motor
4.4″ Diameter
Shaded Pole
Thermally Protected
Open Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
3/8″ Diameter Shaft with FlatІ” Leads
Extended Studs Shaft End, Resilient Ring Mounting
1/10HP Ventilation Motor, 1 Phase, 4.4 Frame, 850 RPM, 1 Speed, Shaded Pole, 230V, OAO Enclosure
