5HP 3PH 184TC 1800 TEFC SS WD WB
Mfr # CESSWDM3615T | Wright’s # BAL CESSWDM3615T

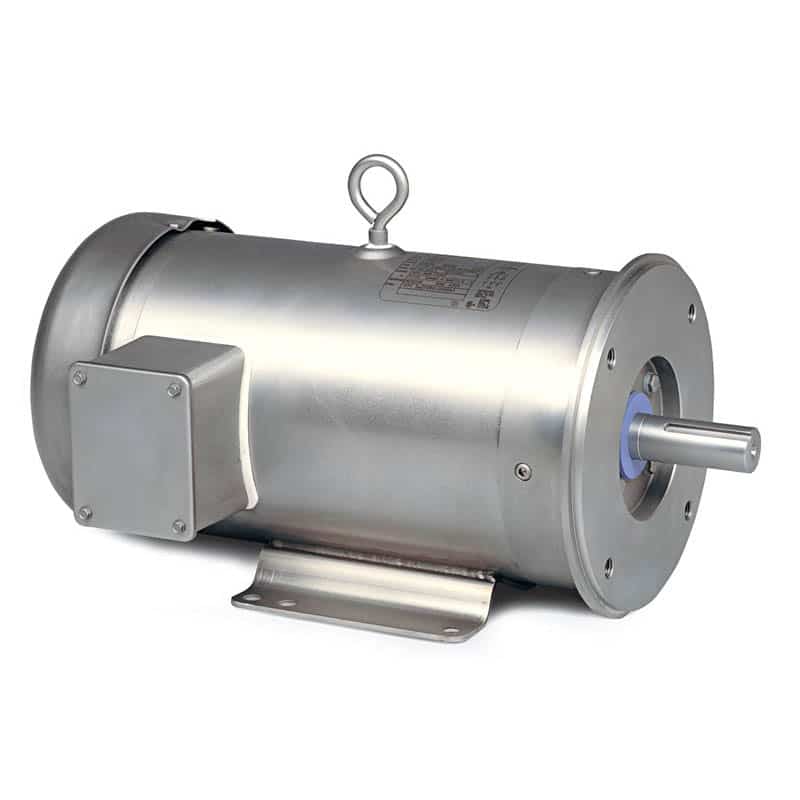

5HP 3-Phase Washdown Duty Motor, 184TC Frame, 230-460V, 1800 RPM, TEFC Enclosure, NEMA “T” Frame Dimensions
Contact Us For Pricing
Product Information
Specifications
Description
Baldor-Reliance® Washdown duty motors are designed to meet the demands of applications that require additional protection from contaminants, and the ability to operate in an environments exposed to washdown methods. As the broadest washdown product family in the marketplace, ABB offers motors from painted to stainless steel to meet the washdown needs of our customers.
Key Features:
• Double sealed motor bearings
• Neoprene rubber gaskets ensure a tight, waterproof seal
• 300 series stainless steel shaft, hardware and nameplate
• Shaft seals on each end
• Sealed frame to endplate joints to prevent water entry
• Easily removable drain plus for thorough drainage in any position
