1/3HP 3PH 56C TENV 1800 230/460V NB SS WD
Mfr # WSSNV13-18-56CRD | Wright’s # WWE WSSNV13-18-56CRD

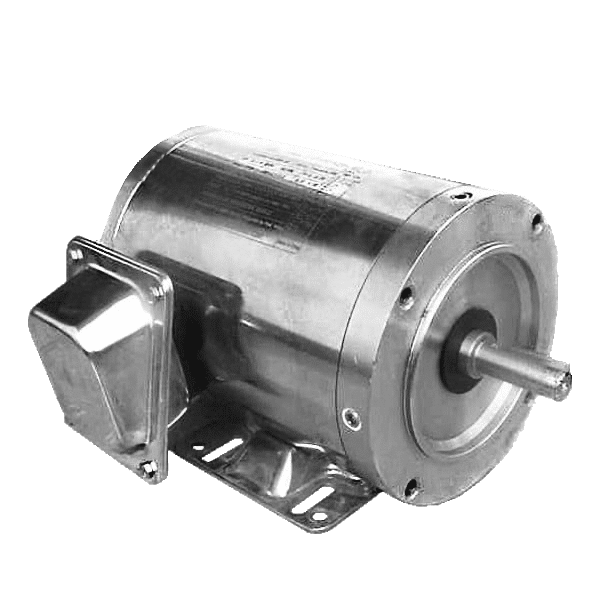

1/3HP Stainless Steel Washdown Motor, 3 Phase, 56C Frame, 1800 RPM, 230/460V, TENV Enclosure
Contact Us For Pricing
Product Information
Brand
Worldwide
Mfr #
WSSNV13-18-56CRD
Wright's #
WWE WSSNV13-18-56CRD
Country of Origin
USA
Specifications
Enclosure
TENV
Full Load Efficiency
82.5
Frame
56C
HP
0.33 HP
HP2
1/3 HP
Insulation Class
F
kW
0.25kW
Material
Stainless Steel
Mounting Type
C-Face Round Body
Phase
3
Rated Current
0.7
Rated Voltage
230/460
RPM
1800
Service Factor
1.15
Description
– 1800 RPM
– 230/460 Volt
– Totally Enclosed Non-Ventilated (TENV) Enclosure
– IP56 Protection
– 1.15 SF
– Class F Insulation
– 304 Stainless Steel Frame, End Bracket and Junction Box
– Stainless Steel Shaft
– Anti-Rust Film Applied to Rotor
– Double Lip Seals with an Additional Shaft Slinger on the Drive-End
– O-Ring Installed on Endbells to Prevent Moisture Intrusion
– Stainless Steel Cord Connector Included
