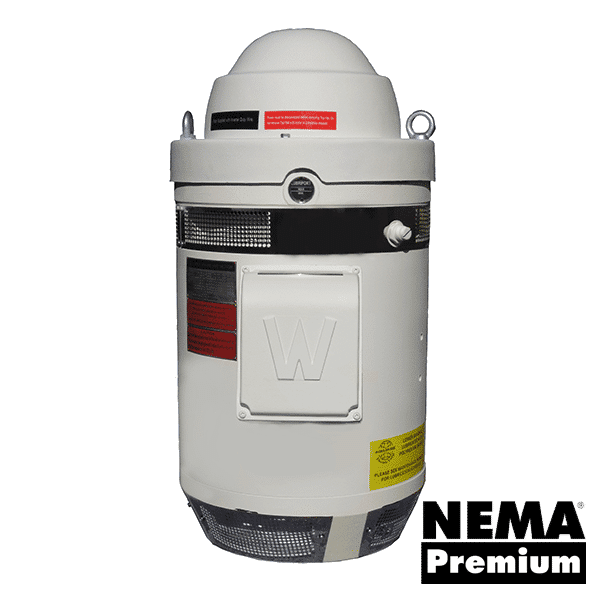

75HP 3PH 365TP WPI 1800 460V WB VHS
Mfr # WPEVHS75-18-460-365TP-16.5 | Wright’s # WWE WPEVHS75-18-460-365TP-16.5
75HP Vertical Pump Motor, 3 Phase, 365TP Frame, 1800 RPM, 460V, WPI Enclosure
Contact Us For Pricing
Product Information
Brand
Worldwide
Mfr #
WPEVHS75-18-460-365TP-16.5
Wright's #
WWE WPEVHS75-18-460-365TP-16.5
Country of Origin
USA
Specifications
Enclosure
WPI
Full Load Efficiency
95
Frame
365TP
HP
75 HP
HP2
75 HP
Insulation Class
F
kW
55.93kW
Mounting Type
Rigid Base
Phase
3
Rated Current
85
Rated Voltage
460
RPM
1800
Service Factor
1.15
Description
– 1800 RPM
– 230/460 Volt (10 – 100 HP)
– 460 Volt Only Motors (50 – 500 HP) are Suitable for Part Winding Start (PWS)
– Weather Protected (WPI) Enclosure with Rodent Screens
– IP23 Protection
– 1.15 SF
– Class F Insulation
– Vertical P Base
– Premium Efficiency
– Inverter Duty, 10:1 Variable Torque
– Spike Resistant Wiring per NEMA MG-1 Part 31
– 120 Volt Space Heaters
– Double Thrust Bearing Design (100-500 HP) for Deeper Well Applications
– Winding RTDs (125-500 HP)
– Gray Epoxy Paint for Cooler Surface Temperature
– Standard Coupling Size Included
