Worldwide

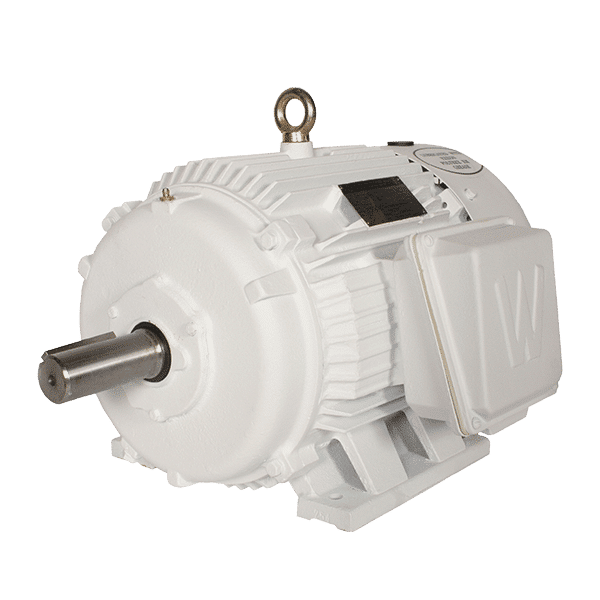

75HP 3PH 444T TEFC 1200 230/460/796V WB OWP
Mfr # OW75-12-444T | Wright’s # WWE OW75-12-444T
75HP Oil Well Pump Motor, 3 Phase, 444T Frame, 1200 RPM, 230/460/796V, TEFC Enclosure
$8,004.38
Product Information
Brand
Worldwide
Mfr #
OW75-12-444T
Wright's #
WWE OW75-12-444T
Country of Origin
USA
Specifications
Enclosure
TEFC
Full Load Efficiency
93.5
Frame
444T
HP
75 HP
HP2
75 HP
Insulation Class
F
kW
55.93kW
Mounting Type
Rigid Base
Phase
3
Rated Current
88.2
Rated Voltage
230/460/796
RPM
1200
Service Factor
1.15
Description
– 230/460/796 Volt
– Totally Enclosed Fan Cooled (TEFC) Enclosure
– IP55 Protection
– 1.15 SF
– Class F Insulation
– Rigid Base
– Three Winding Thermostats Provided (One Per Phase)
– NEMA Design D – High Slip 5-8%
– Cast Iron Construction/Steel Fan Cover
– F2 Mount
– Suitable for 50 Hz with 1.0 SF
