75HP 3PH 365TS ODP 1800 230/460V WB
Mfr # ODP75-18-365TS | Wright’s # WWE ODP75-18-365TS

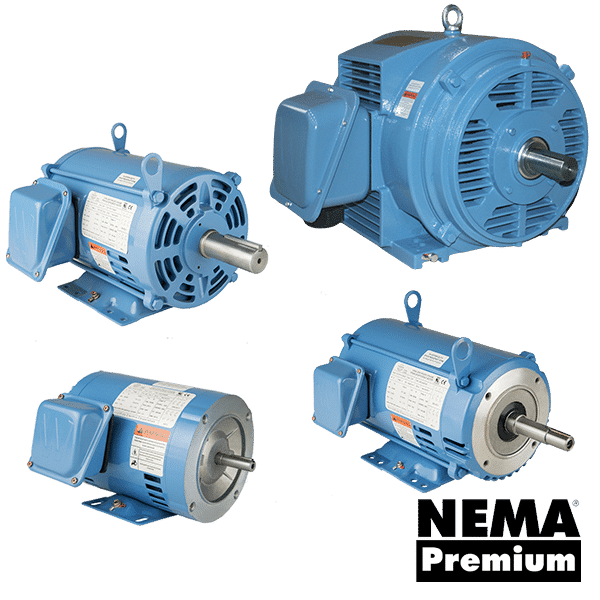

75HP General Purpose Motor, 3 Phase, 365TS Frame, 1800 RPM, 230/460V, ODP Enclosure
$4,011.08
Product Information
Brand
Worldwide
Mfr #
ODP75-18-365TS
Wright's #
WWE ODP75-18-365TS
Country of Origin
USA
Specifications
Enclosure
ODP
Full Load Efficiency
95
Frame
365TS
HP
75 HP
HP2
75 HP
Insulation Class
F
kW
55.93kW
Material
Cast Iron
Mounting Type
Rigid Base
Phase
3
Rated Current
86.3
Rated Voltage
230/460
RPM
1800
Service Factor
1.15
Description
– Class B Temperature Rise
– Inverter Duty, 10:1 CT / 20:1 VT (1.0 SF)
– Inverter Grade Magnet Wire Meets or Exceeds NEMA MG-1 Part 31
– Exclusive Double Vacuum Pressure Impregnation (VPI) Insulation System
– Double Drilled Feet to Accommodate Mounting Flexibility (143T-445T)
