Worldwide
2HP 3PH 56C TEFC 3600 230/460V NB WB JP
Mfr # NATJE2-36-56CB | Wright’s # WWE NATJE2-36-56CB

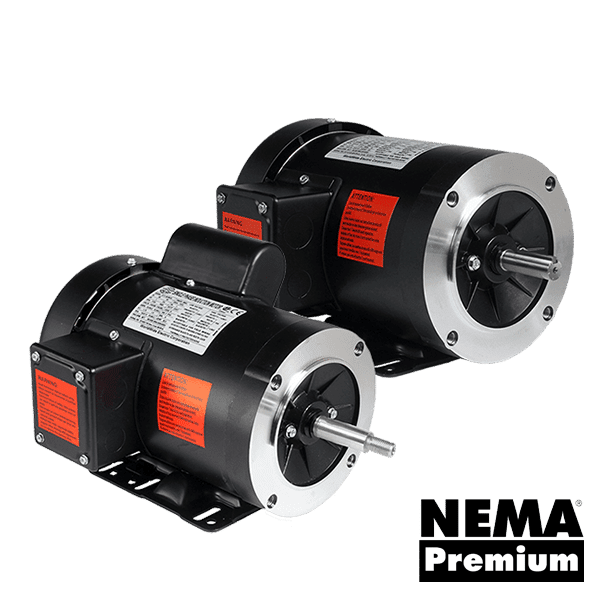

2HP Jet Pump Motor, 3 Phase, 56C Frame, 3600 RPM, 230/460V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand Worldwide
Mfr # NATJE2-36-56CB
Wright's # WWE NATJE2-36-56CB
Country of Origin USA
Specifications
Enclosure TEFC
Full Load Efficiency 85.5
Frame 56C
HP 2 HP
HP2 2 HP
Insulation Class F
kW 1.49kW
Mounting Type C-Face with Removable Base
Phase 3
Rated Current 2.61
Rated Voltage 230/460
RPM 3600
Service Factor 1.15
Description
– 3600 RPM
– Premium Efficiency
– Suitable for 50 Hz at 1.0 SF (Derate in HP)
– Totally Enclosed Fan Cooled (TEFC) Enclosure
– IP43 Protection
– 1.15 SF
– Class F Insulation
– C-Face with Removable Base
– 56J – Threaded Shaft
– 56C – Keyed Shaft
– Vacuum Pressure Impregnation (VPI) System
– Anti-Rust Film Applied to Rotor
– Improved Shaft Seal on Drive-End Protects Drive-End Bearing from Moisture and Contaminants
