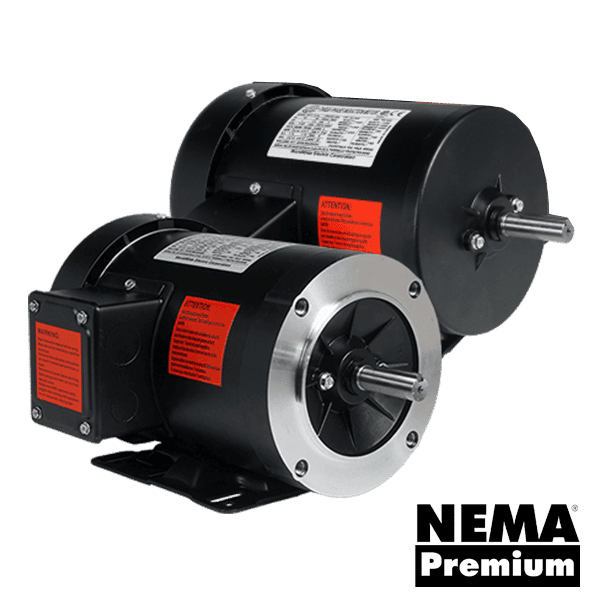

1-1/2HP 3PH 56C TEFC 3600 230/460V NB
Mfr # NATE1.5-36-56CRD | Wright’s # WWE NATE1.5-36-56CRD
1-1/2HP General Purpose Motor, 3 Phase, 56C Frame, 3600 RPM, 230/460V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand Worldwide
Mfr # NATE1.5-36-56CRD
Wright's # WWE NATE1.5-36-56CRD
Country of Origin USA
Specifications
Enclosure TEFC
Full Load Efficiency 84
Frame 56C
HP 1.5 HP
HP2 1-1/2 HP
Insulation Class F
kW 1.12kW
Mounting Type C-Face Round Body
Phase 3
Rated Current 1.98
Rated Voltage 230/460
RPM 3600
Service Factor 1.15
Description
– 230/460 Volt
– Totally Enclosed Fan Cooled (TEFC) Enclosure
– IP43 Protection
– 1.15 SF
– Class F Insulation
– Premium Efficiency (1-3 HP NATE Series)
– Vacuum Pressure Impregnation (VPI) System
– Anti-Rust Film Applied to Rotor
– Improved Shaft Seal on Drive-End Protects Drive-End Bearing from Moisture and Contaminants
– Suitable for 50 Hz at 1.0 SF (Derate in HP)
