75HP 3PH 444T TEFC 900 230/460V WB
Mfr # LAM75-9-444T | Wright’s # WWE LAM75-9-444T

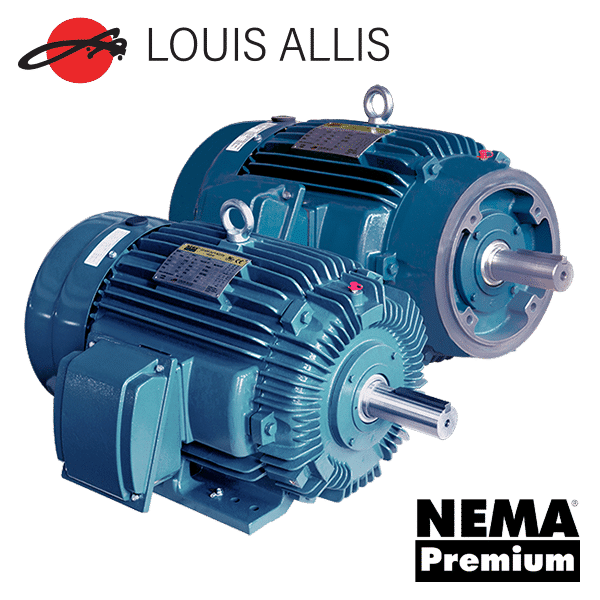

75HP General Purpose Motor, 3 Phase, 444T Frame, 900 RPM, 230/460V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand
Worldwide
Mfr #
LAM75-9-444T
Wright's #
WWE LAM75-9-444T
Country of Origin
USA
Specifications
Enclosure
TEFC
Full Load Efficiency
93.6
Frame
444T
HP
75 HP
HP2
75 HP
Insulation Class
F
kW
55.93kW
Material
Rolled Steel
Mounting Type
Rigid Base
Phase
3
Rated Current
94
Rated Voltage
230/460
RPM
900
Service Factor
1.25
Description
– Totally Enclosed Fan Cooled (TEFC) Enclosure
– IP55 Protection
– Class F insulation
– NEMA Premium Efficiency
– Inverter Duty, 10:1 CT / 20:1 VT (1.0 SF)
– Class 1 Division 2 Groups A,B,C,D
– Double Vacuum Pressure Impregnation (VPI) Treatment
– Heavy Gauge Rolled Steel Fan Cover
– All Frames Double Punched
– Metal Clad V-Ring on DE, Oil Seal on ODE
