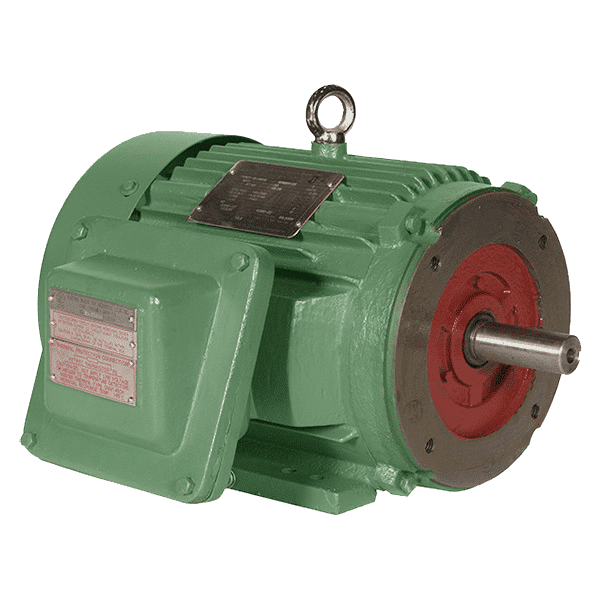

75HP 3PH 365TC EXP TEFC 1800 230/460V WB
Mfr # IXPEWWE75-18-365TC | Wright’s # WWE IXPEWWE75-18-365TC
75HP Explosion Proof Motor, 3 Phase, 365TC Frame, 1800 RPM, 230/460V, EXP TEFC Enclosure
Contact Us For Pricing
Product Information
Specifications
Description
– Totally Enclosed Fan Cooled Explosion Proof (TEXP) Enclosure – Rigid Base
– IP55 Protection
– 1.15 SF
– Class F Insulation
– Premium Efficiency (1-200 HP)
– High Efficiency (250-300 HP)
– Inverter Duty, 5:1 CT / 10:1 VT (1-200 HP only)
– Normally Closed Winding Thermostats Provided
– UL Listed Class 1, Div. 1, Groups C and D; Class 2, Div. 1, Groups F and G; T3C; Inverter Duty (1-200 HP), 40°C amb. temp. as standard
– 143T-215T: Class 1, Div. 1, Groups C and D; T3C; Inverter Duty (1-200 HP); 55°C amb. temp.
– 254T-449T: Class 1, Div. 1, Groups C and D; T2C;
Inverter Duty (1-200 HP); 55°C amb. temp.
