WEG

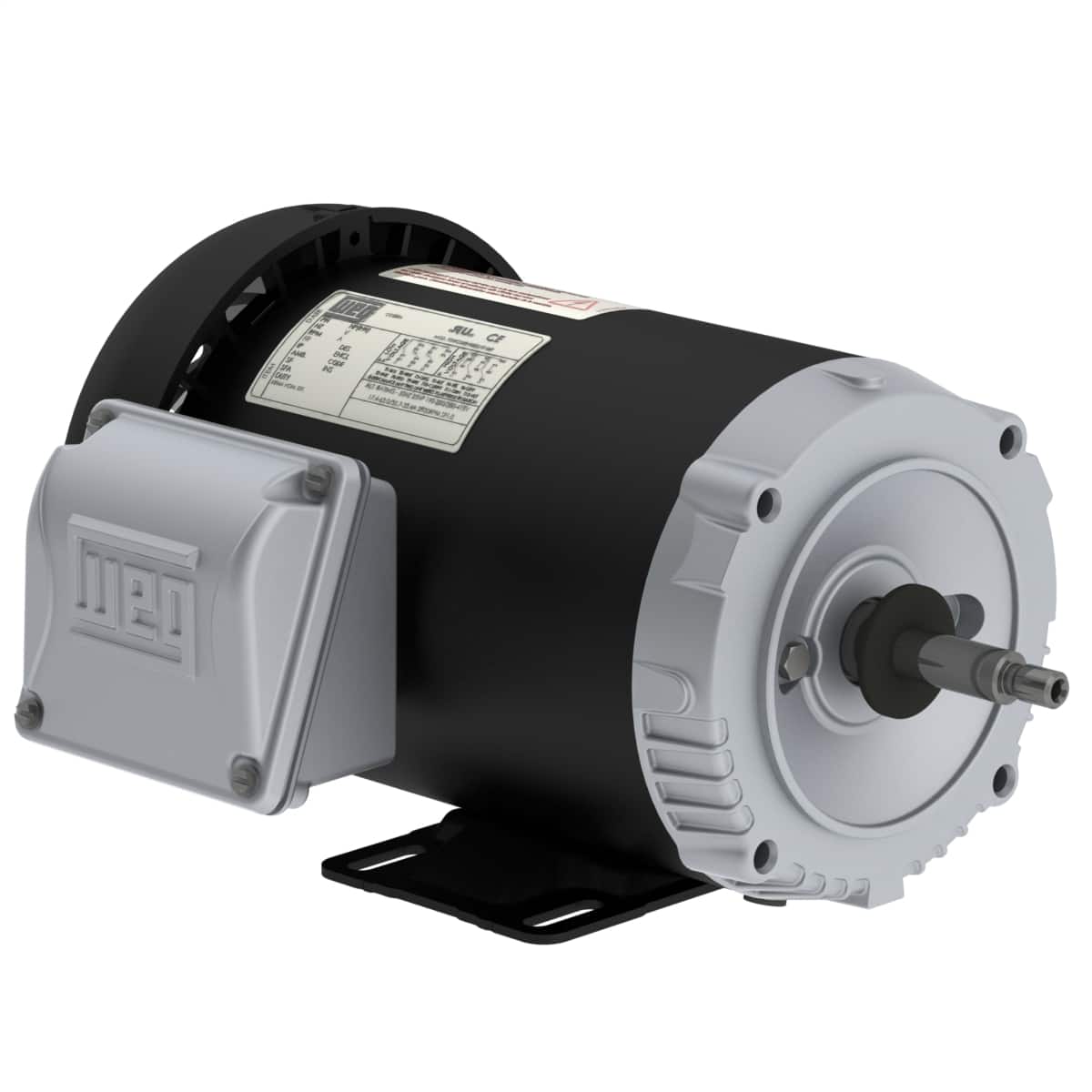

1/2HP 3PH 56J 2P ODP 3600 208-230/460V WB
Mfr # .5036OS3EJP56J-S | Wright’s # WEG .5036OS3EJP56J-S
0.5HP Jet Pump Motor, 3 Phase, 56J Frame, 3600 RPM, 208-230/460V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand WEG
Mfr # .5036OS3EJP56J-S
Wright's # WEG .5036OS3EJP56J-S
Country of Origin MEX
Specifications
C Dim 10.827"
Efficiency Standard Efficiency
Enclosure ODP
Frame 56J
HP 0.5 HP
HP2 1/2 HP
kW 0.37kW
Material Rolled Steel
Number of Poles 2
Phase 3
Rated Current 0.9
Rated Voltage 208-230/460
RPM 3600
Description
These versatile motors have the torque and durability for the toughest commercial applications, yet are also economical choices for residential applications. Available with or without base and in “J” and “C” configurations.
• Insulation class B (ODP)
• Insulation class F (TEFC)
• NEMA Service factor
