WEG

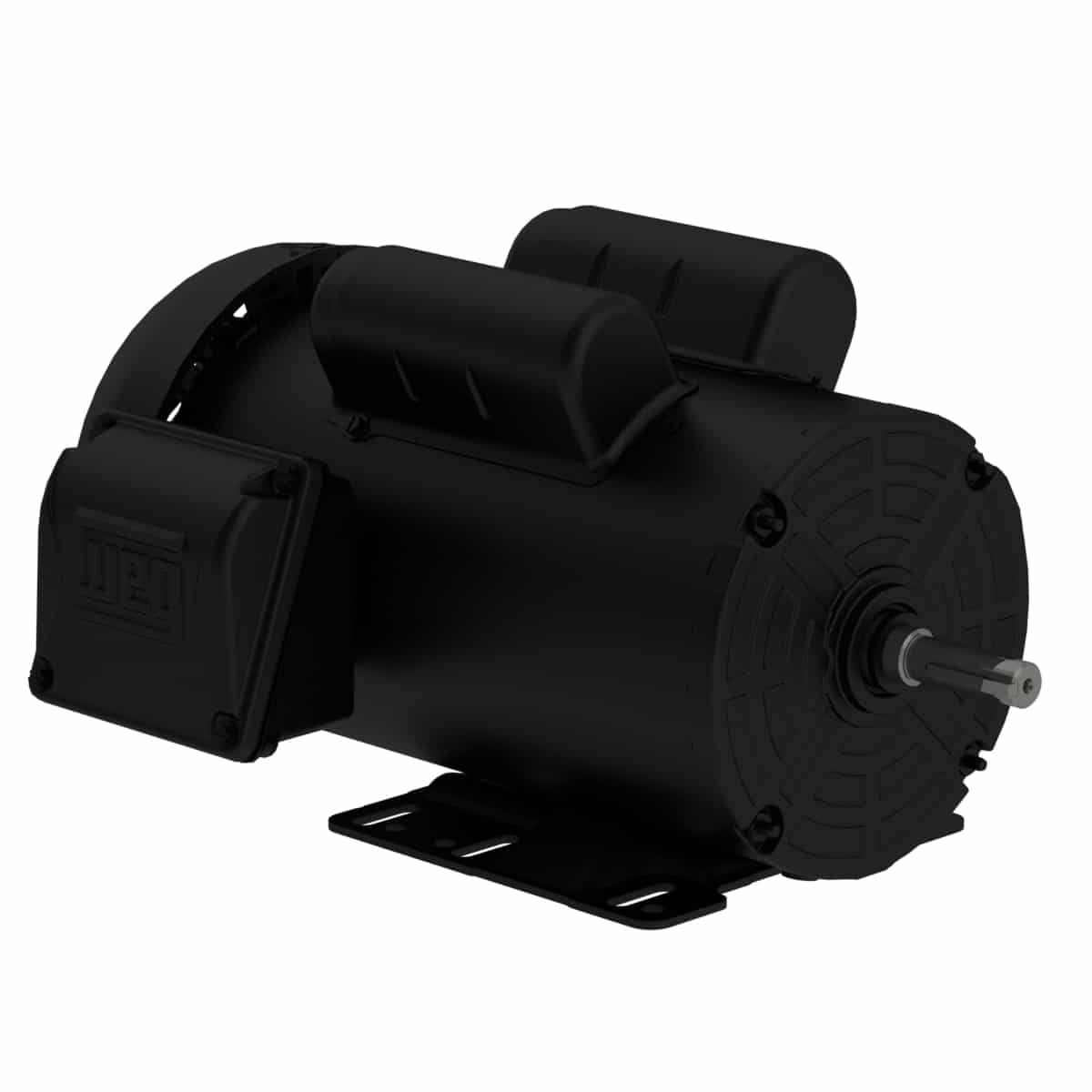

1/3HP 3PH 56 4P TEFC 1800 208-230/460V Brake
Mfr # .3318ES3EBMW56-S | Wright’s # WEG .3318ES3EBMW56-S
0.33HP Brake Motor, 3 Phase, 56 Frame, 1800 RPM, 208-230/460V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand WEG
Mfr # .3318ES3EBMW56-S
Wright's # WEG .3318ES3EBMW56-S
Country of Origin MEX
Specifications
C Dim 14.61"
Efficiency Standard Efficiency
Enclosure TEFC
Frame 56
HP 0.33 HP
HP2 1/3 HP
kW 0.25kW
Material Rolled Steel
Number of Poles 4
Phase 3
Rated Current 0.66
Rated Voltage 208-230/460
RPM 1800
Description
WEG W22 brake motors consist of an induction motor coupled to a disc brake. Brake is of sturdy construction with few moving parts which guarantees long durability and minimum maintenance.
• Class F insulation (Impregnation Resin and Magnet wire are class H)
• 230V Brake Rectifier
• F1 Mounted
• Stainless Steel Nameplate – Laser etched with high contrast background
• Regreasable ball bearings (Frames 254T and up)
• 1.25 Service Factor
• NPT Threaded terminal box
• Armature type brake
• Manual Release
