WEG
75HP 3PH 365T 4P TEFC 1800 208-230/460V SG CI
Mfr # 07518ET3E365T-W22G | Wright’s # WEG 07518ET3E365T-W22G

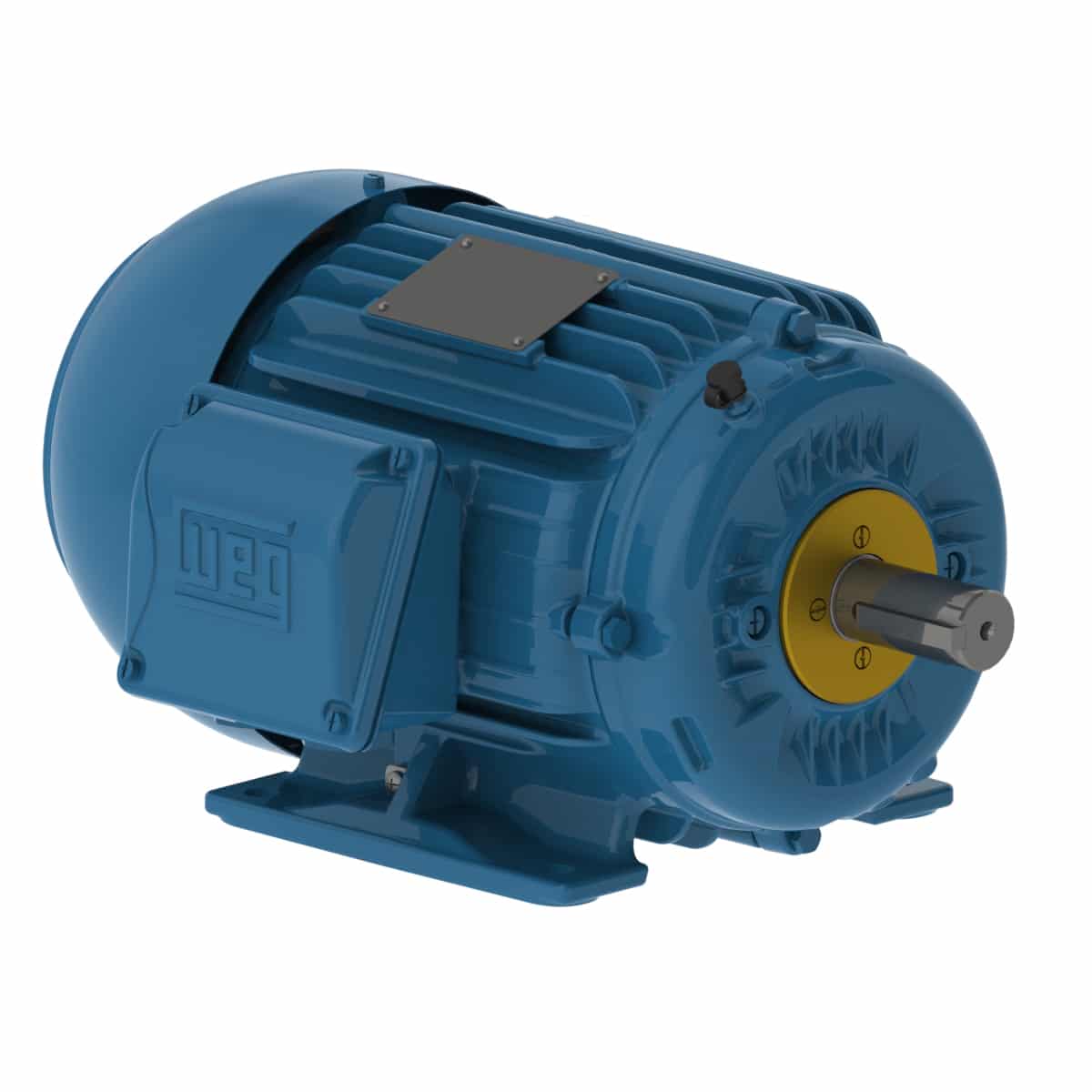

75HP General Purpose Motor, 3 Phase, 365T Frame, 1800 RPM, 208-230/460V, TEFC Enclosure
$8,526.87
Product Information
Brand
WEG
Mfr #
07518ET3E365T-W22G
Wright's #
WEG 07518ET3E365T-W22G
Specifications
C Dim
34.251"
Efficiency
NEMA Premium®
Enclosure
TEFC
Frame
365T
HP
75 HP
HP2
75 HP
kW
55kW
Material
Cast Iron
Number of Poles
4
Phase
3
Rated Current
84.1
Rated Voltage
208-230/460
RPM
1800
Description
All Cast Iron Construction, including Terminal Box and Fan Cover. Solid feet for reduced vibration levels and impact absorption. Optimized ventilation system for cooler operation and extended life. High Grade FC200 cast iron provides superior mechanical strength and heat dissipation. Four Bolt Conduit Cover with glued Neoprene Gasket. Impregnation Resin and magnet wire are insulation class H.
