WEG

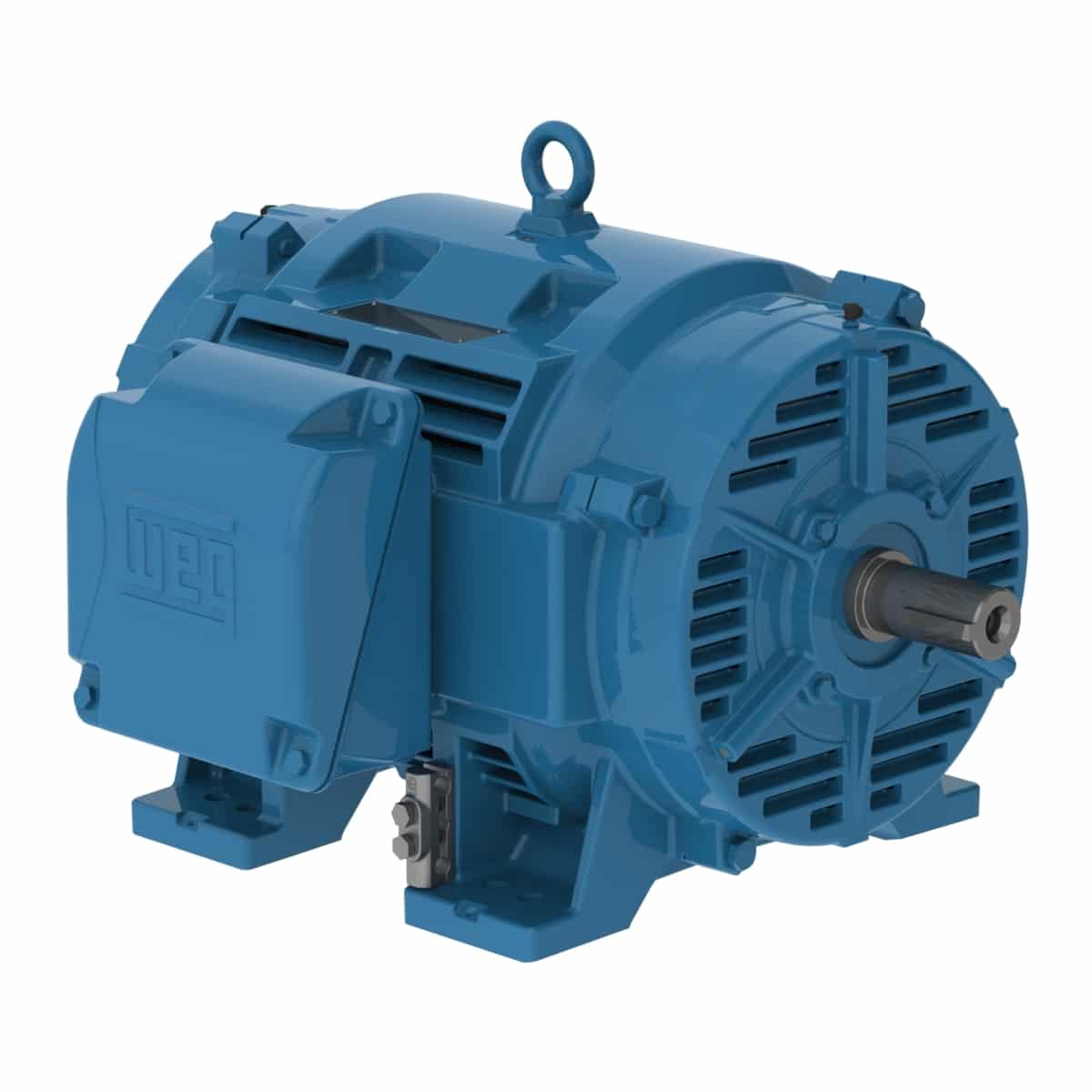

60HP 3PH 364T 4P ODP 1800 208-230/460V CI
Mfr # 06018OT3E364T-W40 | Wright’s # WEG 06018OT3E364T-W40
60HP General Purpose Motor, 3 Phase, 364T Frame, 1800 RPM, 208-230/460V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand WEG
Mfr # 06018OT3E364T-W40
Wright's # WEG 06018OT3E364T-W40
Specifications
C Dim 29.725"
Efficiency NEMA Premium®
Enclosure ODP
Frame 364T
HP 60 HP
HP2 60 HP
kW 45kW
Material Cast Iron
Number of Poles 4
Phase 3
Rated Current 69.9
Rated Voltage 208-230/460
RPM 1800
Description
All Cast Iron Construction, including Terminal Box and Fan Cover. Solid feet for reduced vibration levels and impact absorption. Optimized ventilation system for cooler operation and extended life. High Grade FC200 cast iron provides superior mechanical strength and heat dissipation. Four Bolt Conduit Cover with glued Neoprene Gasket. Impregnation Resin and magnet wire are insulation class H.
