WEG

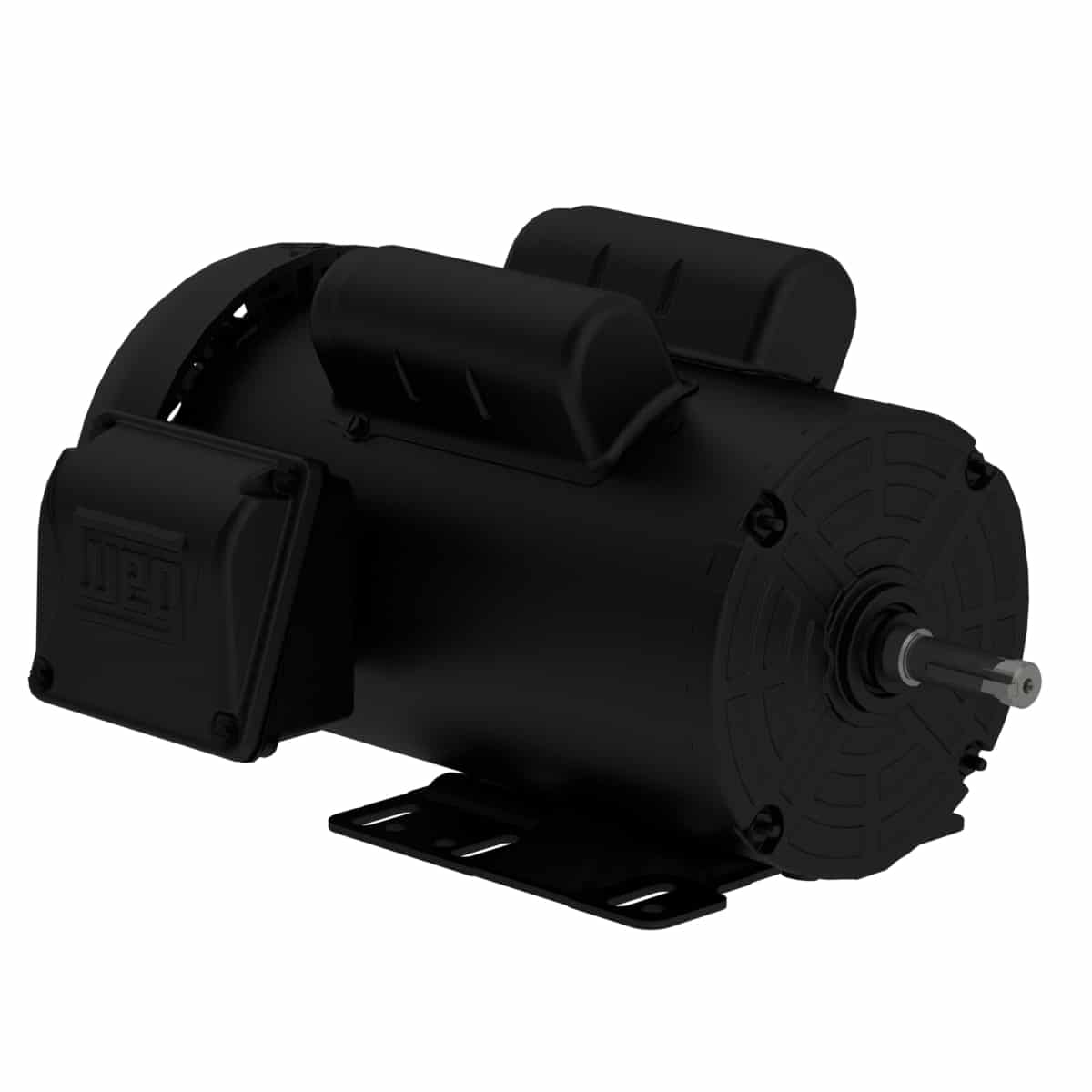

15HP 3PH 254T 4P TEFC 1800 208-230/460V RS Brake
Mfr # 01518ET3EBM254T-S | Wright’s # WEG 01518ET3EBM254T-S
15HP Brake Motor, 3 Phase, 254T Frame, 1800 RPM, 208-230/460V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand WEG
Mfr # 01518ET3EBM254T-S
Wright's # WEG 01518ET3EBM254T-S
Country of Origin MEX
Specifications
C Dim 31.22"
Efficiency NEMA Premium®
Enclosure TEFC
Frame 254T
HP 15 HP
HP2 15 HP
kW 11kW
Material Rolled Steel
Number of Poles 4
Phase 3
Rated Current 18.2
Rated Voltage 208-230/460
RPM 1800
Description
WEG W22 brake motors consist of an induction motor coupled to a disc brake. Brake is of sturdy construction with few moving parts which guarantees long durability and minimum maintenance.
• Class F insulation (Impregnation Resin and Magnet wire are class H)
• 230V Brake Rectifier
• F1 Mounted
• Stainless Steel Nameplate – Laser etched with high contrast background
• Regreasable ball bearings (Frames 254T and up)
• 1.25 Service Factor
• NPT Threaded terminal box
• Armature type brake
• Manual Release
