WEG
7.5HP 3PH 213JM 4P TEFC 1800 208-230/460V CI
Mfr # 00718ET3E213JM-W22 | Wright’s # WEG 00718ET3E213JM-W22

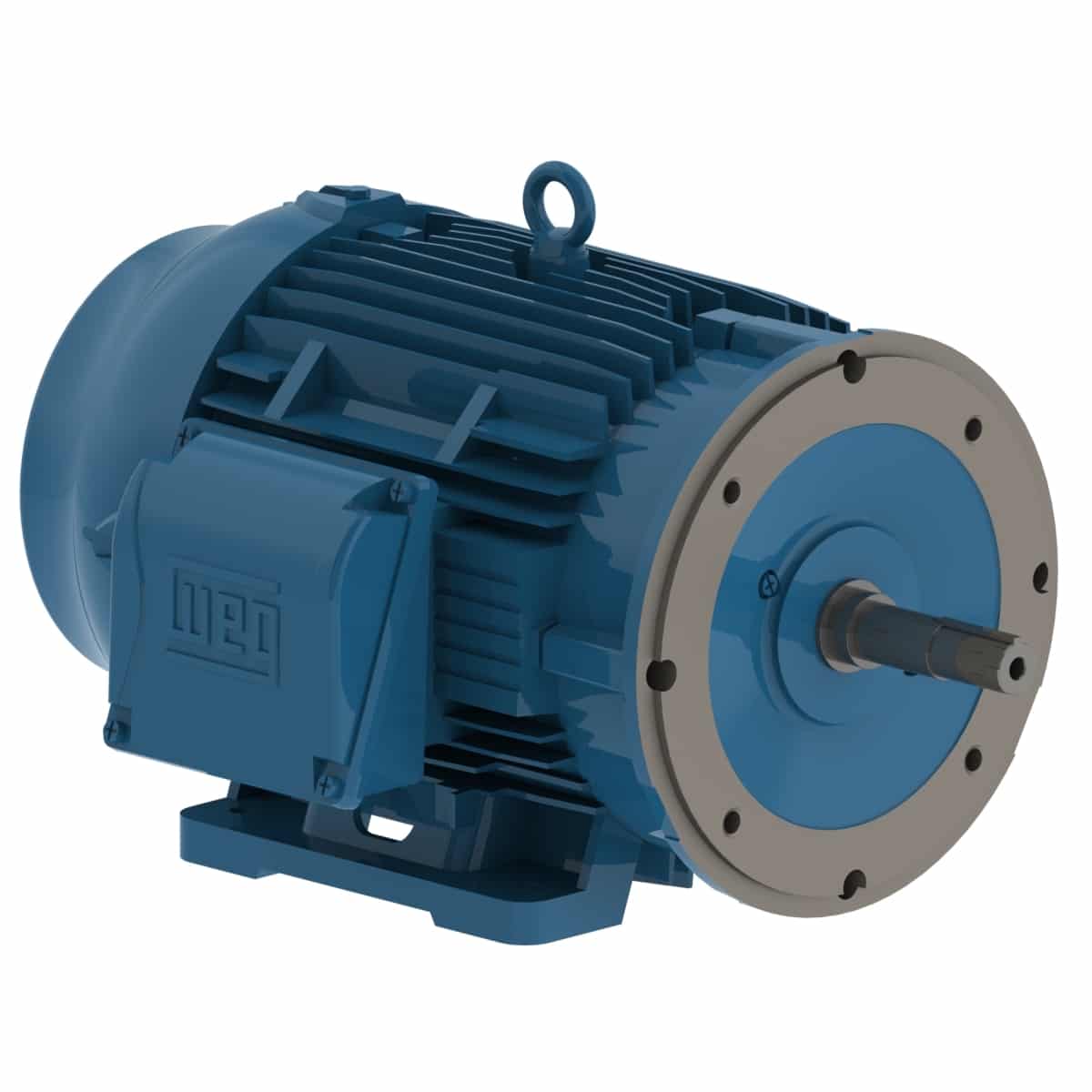

7.5HP Close-Coupled Pump Motor, 3 Phase, 213JM Frame, 1800 RPM, 208-230/460V, TEFC Enclosure
$887.27
Product Information
Brand WEG
Mfr # 00718ET3E213JM-W22
Wright's # WEG 00718ET3E213JM-W22
Specifications
C Dim 20.392"
Efficiency NEMA Premium®
Enclosure TEFC
Frame 213JM
HP 7.5 HP
HP2 7-1/2 HP
kW 5.5kW
Material Cast Iron
Number of Poles 4
Phase 3
Rated Current 9.18
Rated Voltage 208-230/460
RPM 1800
Description
All Cast Iron Construction, including Terminal Box and Fan Cover. Solid feet for reduced vibration levels and impact absorption. Optimized ventilation system for cooler operation and extended life. High Grade FC200 cast iron provides superior mechanical strength and heat dissipation. Four Bolt Conduit Cover with glued Neoprene Gasket. Impregnation Resin and magnet wire are insulation class H.
