WEG

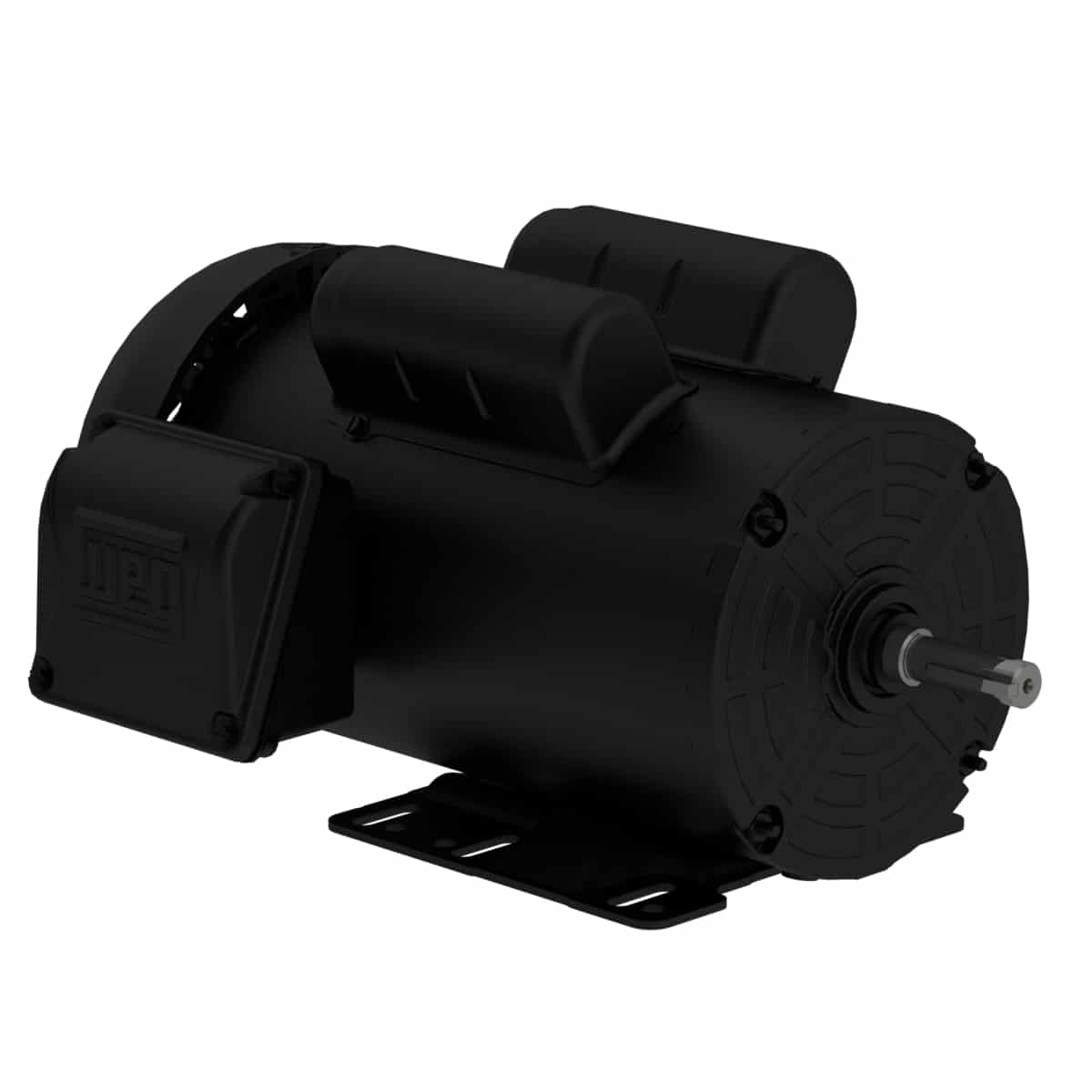

1.5HP 3PH 56HC 4P TEFC 1800 208-230/460V WB Brake
Mfr # 00158ET3EBM56C-S | Wright’s # WEG 00158ET3EBM56C-S
1.5HP Brake Motor, 3 Phase, 56HC Frame, 1800 RPM, 208-230/460V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand
WEG
Mfr #
00158ET3EBM56C-S
Wright's #
WEG 00158ET3EBM56C-S
Country of Origin
MEX
Specifications
Efficiency
NEMA Premium®
Enclosure
TEFC
Frame
56HC
HP
1.5 HP
HP2
1-1/2 HP
kW
1.1kW
Material
Rolled Steel
Number of Poles
4
Phase
3
Rated Voltage
208-230/460
RPM
1800
Description
WEG W22 brake motors consist of an induction motor coupled to a disc brake. Brake is of sturdy construction with few moving parts which guarantees long durability and minimum maintenance.
• Class F insulation (Impregnation Resin and Magnet wire are class H)
• 230V Brake Rectifier
• F1 Mounted
• Stainless Steel Nameplate – Laser etched with high contrast background
• Regreasable ball bearings (Frames 254T and up)
• 1.25 Service Factor
• NPT Threaded terminal box
• Armature type brake
• Manual Release
