WEG
1.5KW 3PH 90L 4P TEFC 1800 208-230/460V CI
Mfr # 00158ET3EAL90L-W22 | Wright’s # WEG 00158ET3EAL90L-W22

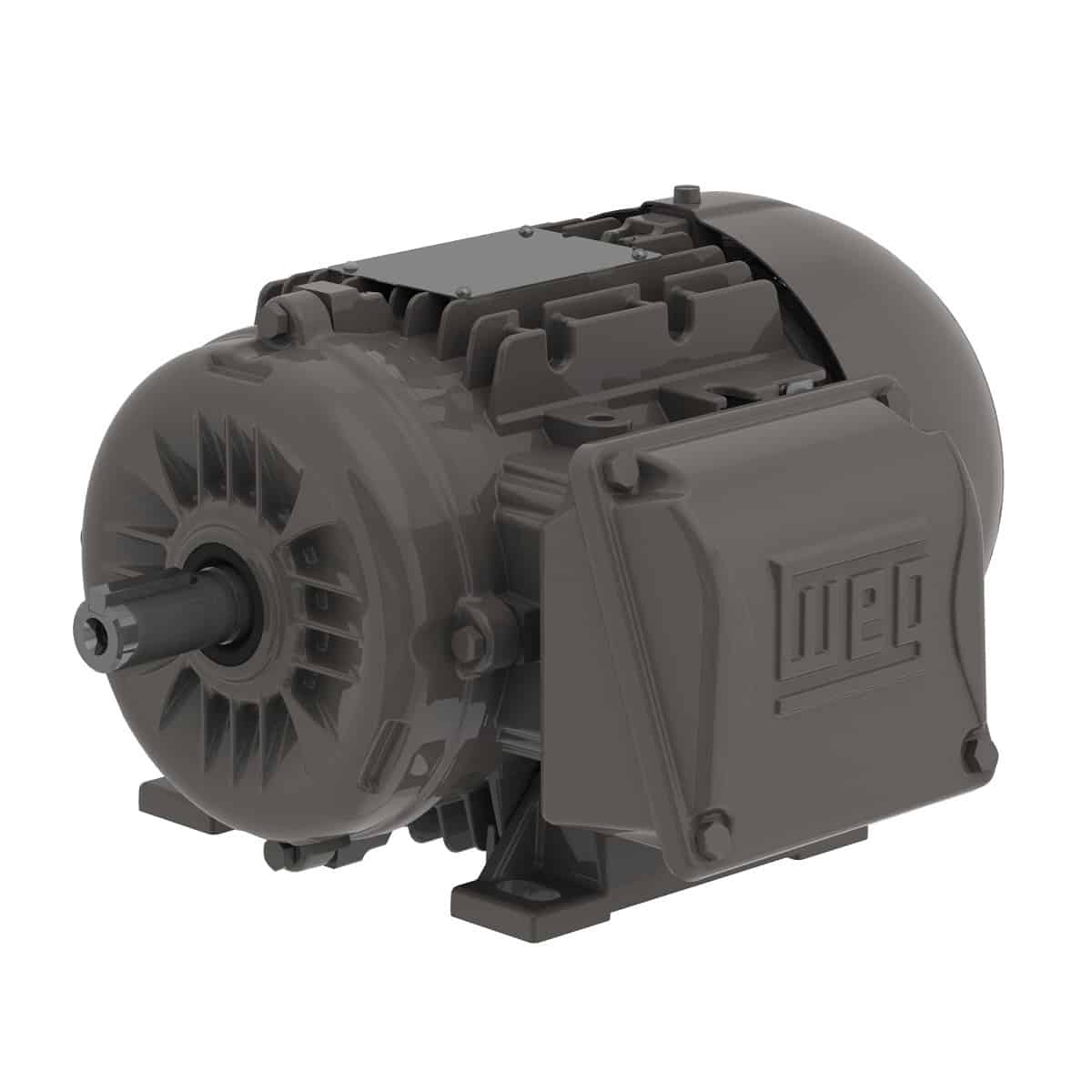

2HP IEC Motor, 3 Phase, 90L Frame, 1800 RPM, 208-230/460V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand WEG
Mfr # 00158ET3EAL90L-W22
Wright's # WEG 00158ET3EAL90L-W22
Specifications
C Dim 12.953"
Efficiency NEMA Premium®
Enclosure TEFC
Frame 90L
HP 2 HP
HP2 2 HP
kW 1.5kW
Material Cast Iron
Number of Poles 4
Phase 3
Rated Current 2.79
Rated Voltage 208-230/460
RPM 1800
Description
This line is designed and built according to European IEC34 and IEC79 standards.
• 60 Hz (1.15 Service Factor) and 50 Hz (1.0
Service Factor)
• Class F insulation (Impregnation Resin and
Magnet wire are class H)
• Aluminum frames have removable
feet for easy F1, F2 and F3 (B3L,
B3R, B3T) conversion
• Gasketed conduit box
