US Motors

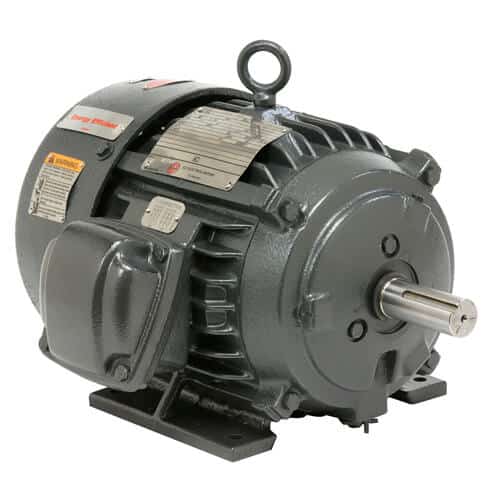

7.5HP 3PH 254T 1200 TEFC 230/460V
Mfr # YC7P3B | Wright’s # USM YC7P3B
7-1/2HP Hazardous Location CORRO-DUTY Single Label Premium Efficient Motor, 3 Phase, 254T Frame, 6 Poles, 1180 RPM, TEFC Enclosure, 230/460V
Contact Us For Pricing
Product Information
Brand
US Motors
Mfr #
YC7P3B
Wright's #
USM YC7P3B
Country of Origin
MEX
Specifications
C Dim
25"
Electrical Type
Polyphase
Enclosure
TEFC
Frame
254T
Frequency
60 Hz
HP
7.5 HP
HP2
7-1/2 HP
Insulation Class
F
kW
5.59kW
Max Ambient
40°C
Mounting Type
HORZ-FOOTED
Number of Poles
6
Number of Speeds
1
Overload Protection
None
Phase
3
Rated Current
18.8/9.4
Rated Voltage
230/460V
RPM
1180
Service Factor
1.15
