US Motors
1.5HP 3PH 145TC 1800 TEFC 230/460V NB
Mfr # U32P2DCR | Wright’s # USM U32P2DCR

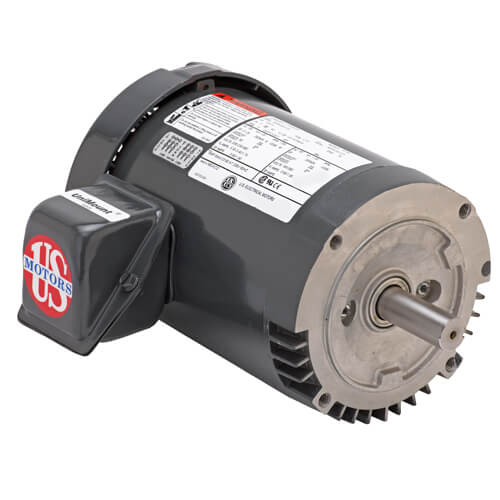

1-1/2HP General Purpose Unimount TEFC Motor, 3 Phase, 145TC Frame, 4 Poles, 1760 RPM, TEFC Enclosure, 230/460V
Contact Us For Pricing
Product Information
Brand
US Motors
Mfr #
U32P2DCR
Wright's #
USM U32P2DCR
Country of Origin
MEX
Specifications
C Dim
13.1"
Electrical Type
Polyphase
Enclosure
TEFC
Frame
145TC
Frequency
60/50 Hz
HP
1.5 HP
HP2
1-1/2 HP
Insulation Class
F
kW
1.12kW
Max Ambient
40°C
Mounting Type
HORZ-FOOTLESS
Number of Poles
4
Number of Speeds
1
Overload Protection
None
Phase
3
Rated Current
4.3/2.2
Rated Voltage
230/460V
RPM
1760
Service Factor
1.25
