US Motors

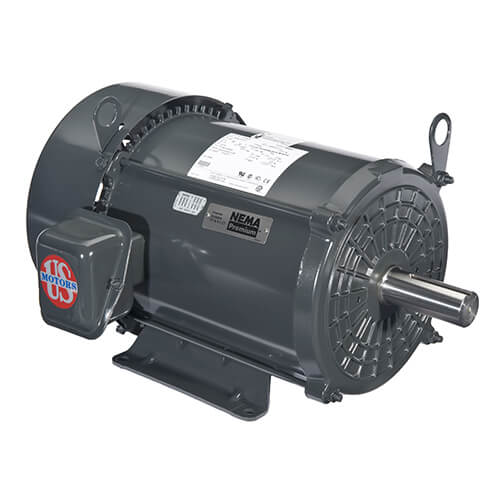

1.5HP 3PH 56H 1800 TEFC 230/460V
Mfr # T32P2AH | Wright’s # USM T32P2AH
1-1/2HP General Purpose Motor, 3 Phase, 56H Frame, 4 Poles, 1725 RPM, TEFC Enclosure, 230/460V
Contact Us For Pricing
Product Information
Brand US Motors
Mfr # T32P2AH
Wright's # USM T32P2AH
Country of Origin MEX
Specifications
C Dim 12.9"
Electrical Type Polyphase
Enclosure TEFC
Frame 56H
Frequency 60Hz
HP 1.5 HP
HP2 1-1/2 HP
Insulation Class B
kW 1.12kW
Max Ambient 40°C
Mounting Type RIGID
Number of Poles 4
Number of Speeds 1
Overload Protection None
Phase 3
Rated Current 4.5-4.5/2.2
Rated Voltage 230/460V
RPM 1725
Service Factor 1.15
