US Motors
3/4HP PSC 5.6″ 1625 CWSE ODP 208-230V 7.5uF DS BM
Mfr # NA1074 | Wright’s # USM NA1074

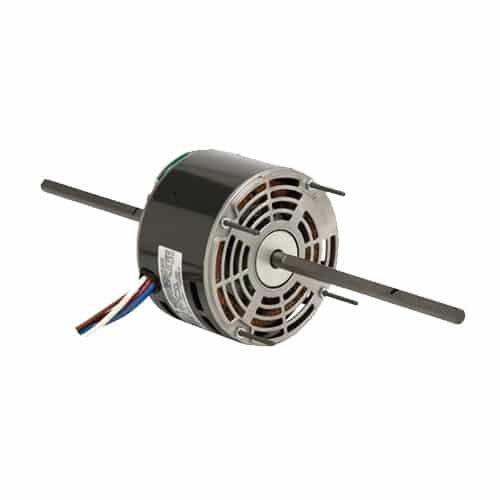

3/4HP Double Shaft Fan & Blower Motor, PSC, 48Y Frame, 1625 RPM, ODP Enclosure, 208-230V, 7.5uF Capacitance
$398.75
Product Information
Brand
US Motors
Mfr #
NA1074
Wright's #
USM NA1074
Country of Origin
MEX
Specifications
C Dim
22"
Electrical Type
PSC
Enclosure
ODP
Frame
48Y
Frequency
60Hz
HP
0.75 HP
HP2
3/4 HP
Insulation Class
B
kW
0.56kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
HUB/STUD
Number of Speeds
3
Overload Protection
Automatic Reset
Phase
1
Rated Current
4.04
Rated Voltage
208-230V
Rotation
CWSE
RPM
1625
Service Factor
1
